Product Introduction

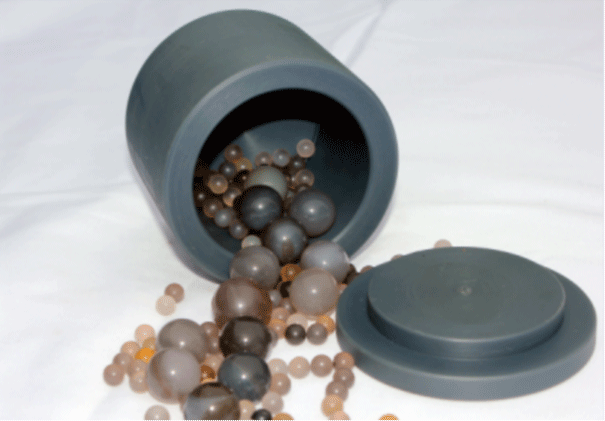

The planetary tempered nylon ball mill tank is a modified nylon tank with good wear resistance. It is formed by mold casting and is durable. It is the preferred ball milling tank when grinding materials in a ball mill.
Technical parameters
Swipe right to see more
| Model specifications | Outer diameter (mm) | Inner diameter (mm) | Height(mm) |
|---|---|---|---|
| 250ml | 98 | 73 | 90 |
| 500ml | 109 | 84 | 120 |
| 1000ml | 133 | 108 | 140 |
| 2000ml | 159 | 145 | 175 |
| 3000ml | 178 | 154 | 198 |
| 5000ml | 219 | 188 | 218 |
| 10L | 248 | 216 | 300 |
Product Features
1. Integral mold casting, good compactness, higher density than ordinary nylon
2. Good uniformity, no internal stress, and more stable structure
3. Tempered modification, high hardness, good rigidity, small friction coefficient
4. High hardness and good wear resistance
5. Good rigidity, strong impact resistance, and can produce a crisp metallic sound when struck.
6. Small friction coefficient and lower heat production
7. Good heat resistance, heat-resistant deformation temperature exceeds 90℃
