Product Introduction

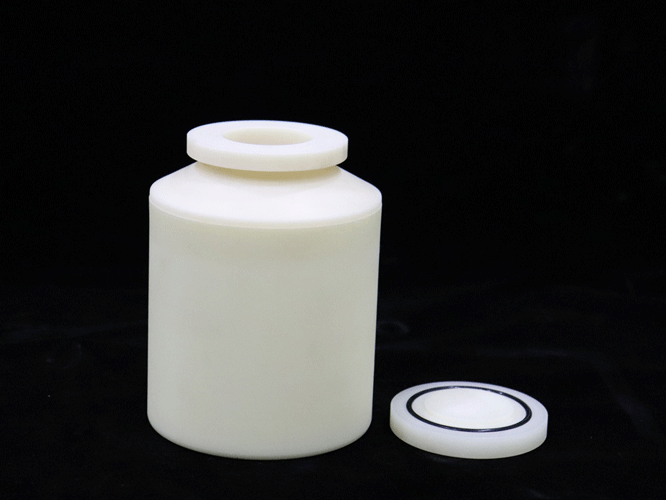

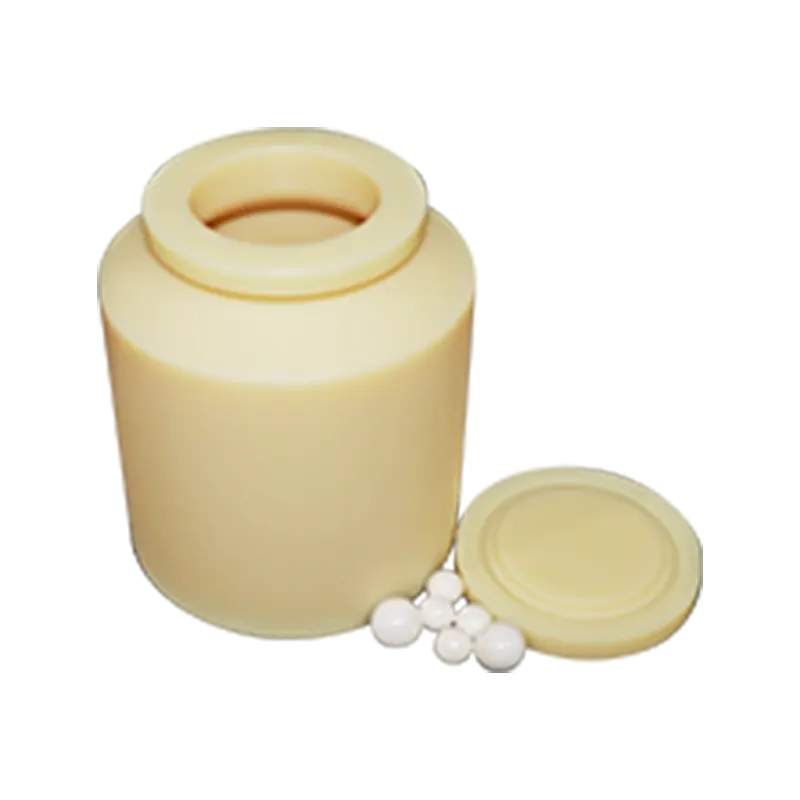

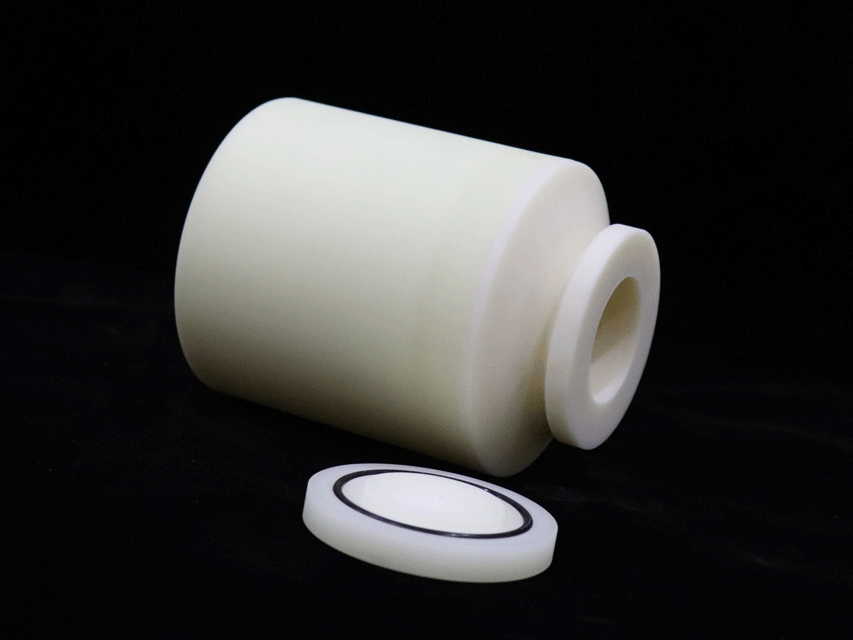

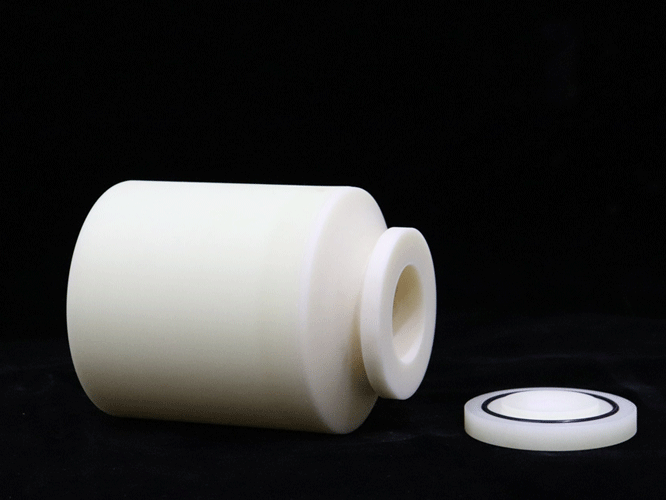

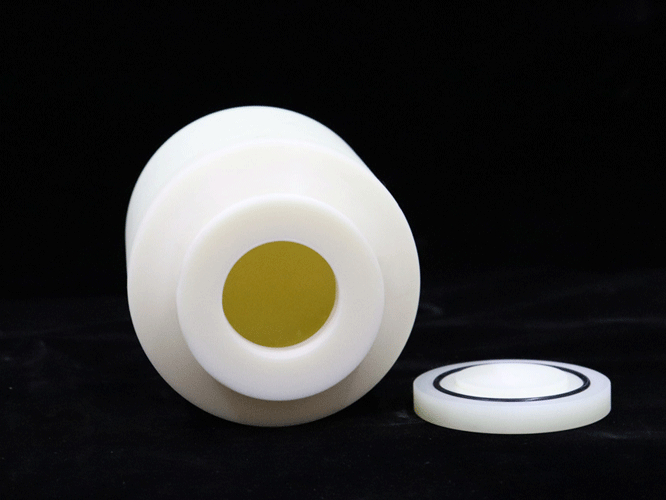

Nylon ball mill jar is a high-quality grinding jar. Nylon jars do not contain metal impurities and are the preferred grinding jars for grinding various metals and high-end pigments. They can be widely used in precious metals, electronic ceramics, magnetic materials, pigments and coatings and other industries.
Technical parameters
Swipe right to see more
| model | Outer diameter(mm) | Inner diameter (mm) | Height including cover (mm) |
|---|---|---|---|
| 500ml | F108 | F88 | F137 |
| 1000ml | F128 | F108 | F179 |
| 1500ml | F128 | F108 | Φ202 |
| 2000ml | F158 | F134 | F207 |
| 3000ml | F178 | F154 | Φ237 |
| 5000ml | F197 | F173 | Φ282 |
| 10L | Φ249 | Φ214 | F328 |
| 15L | F298 | Φ266 | Φ340 |
| 20L | F298 | Φ262 | F451 |
Product Features
