Product Introduction

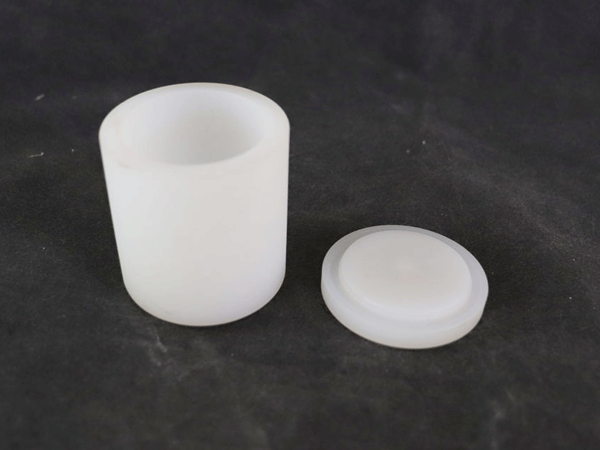

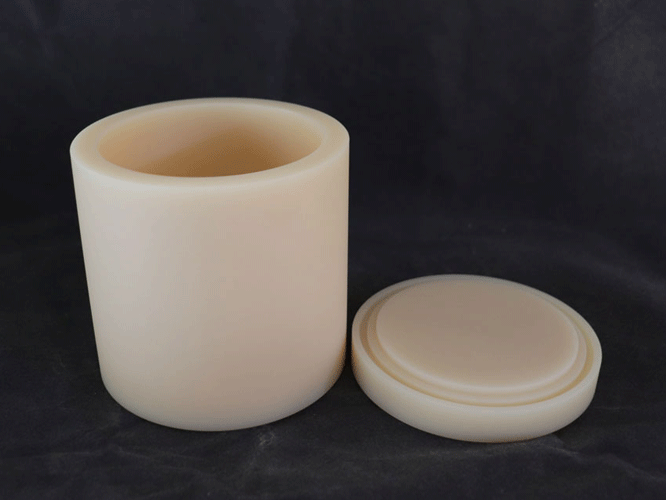

Nylon ball mill jar is a high-quality grinding jar. Nylon jars do not contain metal impurities and are the preferred grinding jars for grinding various metals and high-end pigments. They can be widely used in precious metals, electronic ceramics, magnetic materials, pigments and coatings and other industries.
Technical parameters
Swipe right to see more

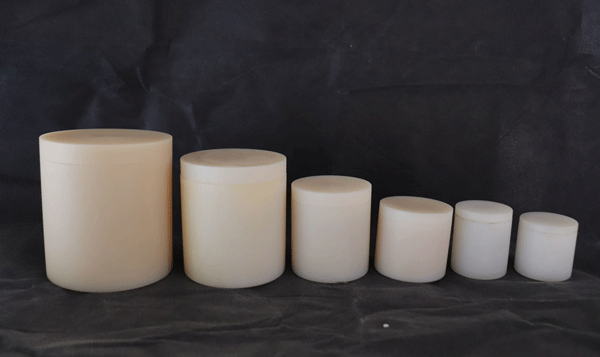

| Model specifications | Outer diameter (mm) | Inner diameter (mm) | Height(mm) |
|---|---|---|---|
| 25ML | 63 | 31 | 65 |
| 50ML | 63 | 43 | 59 |
| 100ML | 68 | 48 | 76 |
| 250ML | 88 | 68 | 98 |
| 500ML | 108 | 88 | 115 |
| 1L | 133 | 109 | 142 |
| 1.5L | 133 | 109 | 178 |
| 2L | 158 | 134 | 172 |
| 2.5L | 158 | 134 | 202 |
| 3L | 158 | 138 | 210 |
| 4L | 178 | 158 | 226 |
| 5L | 218 | 190 | 217 |
| 10L | 246 | 218 | 307 |
| 15L | 273 | 243 | 372 |
| 20L | 320 | 285 | 359 |
| 25L | 320 | 285 | 424 |

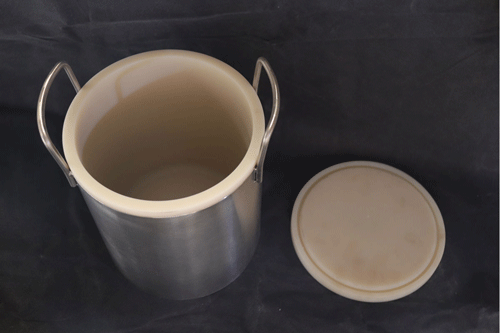

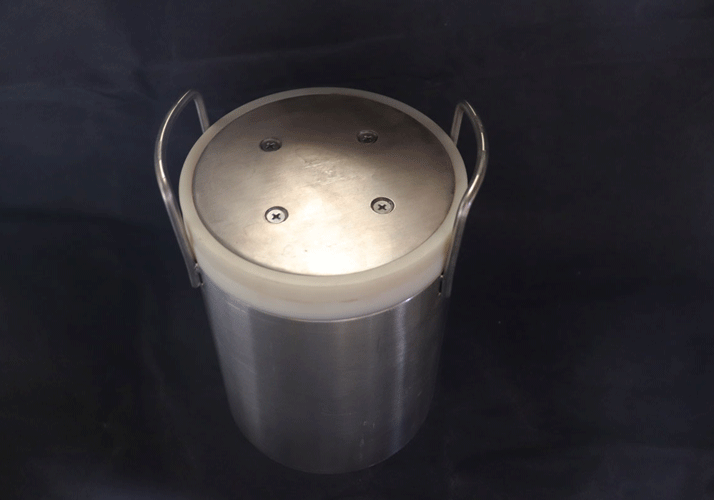

Note: 5L-25L ball mill tanks are covered with stainless steel. Please call us for wall thickness specifications.
Various sizes can be customized according to customer needs.
Product Features
1. Smooth appearance;
2.Higher hardness ;
3. Resistant to various solvents (such as acetone, alcohol) ;
4. Impact resistance ;
5. Good toughness ;
6. High wear resistance ;
7. Not easy to contaminate products ;
8.Long service life ;
9. High grinding efficiency ;
10. The raw materials are processed from imported materials.
