Product Introduction

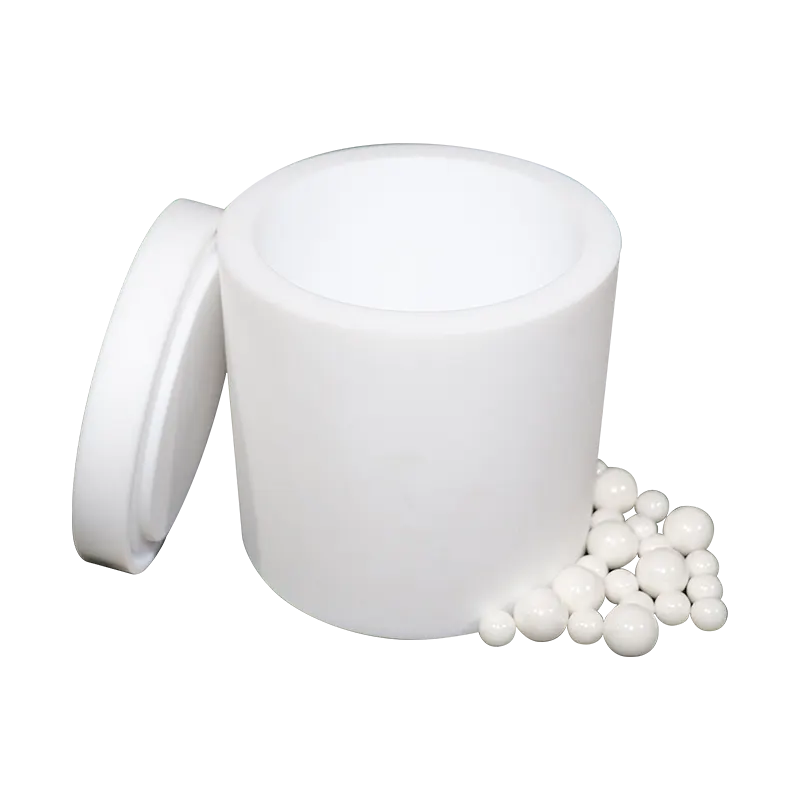

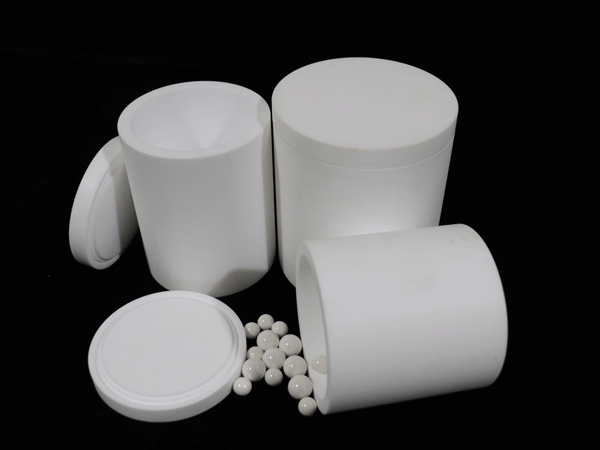

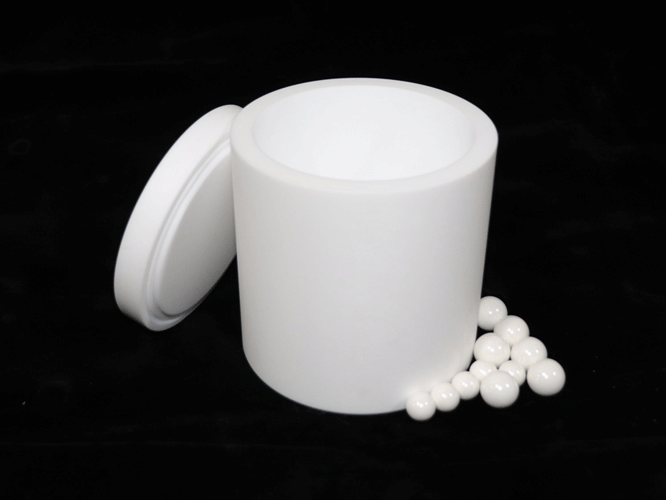

Polytetrafluoroethylene (Teflon or PTFE), commonly known as the "King of Plastics", is a polymer compound polymerized from tetrafluoroethylene. It has excellent chemical stability, corrosion resistance, sealing, high lubrication and non-stickiness, electrical insulation and good anti-aging endurance. Our company's polytetrafluoroethylene grinding jar is professionally designed, selected from polytetrafluoroethylene materials, and processed as a whole.
Technical parameters
| Model specifications | Outer diameter (mm) | Inner diameter (mm) | Height(mm) |
|---|---|---|---|
| 25ML | 63 | 31 | 65 |
| 50ML | 63 | 43 | 59 |
| 100ML | 68 | 48 | 76 |
| 250ML | 88 | 68 | 98 |
| 500ML | 108 | 88 | 115 |
| 1L | 133 | 109 | 142 |
| 1.5L | 133 | 109 | 178 |
| 2L | 158 | 134 | 172 |
| 2.5L | 158 | 134 | 202 |
| 3L | 158 | 138 | 210 |
| 4L | 178 | 158 | 226 |
| 5L | 218 | 190 | 217 |
| 10L | 246 | 218 | 307 |
| 15L | 273 | 243 | 372 |
| 20L | 320 | 285 | 359 |
| 25L | 320 | 285 | 424 |
Product Features
1. High temperature resistance: the operating temperature reaches 250℃.
2. Low temperature resistance: good mechanical toughness ; Even if the temperature drops to -196°C, the elongation of 5% can be maintained.
3. Corrosion resistance: It is inert to most chemicals and solvents, and can withstand strong acids and alkalis, water and various organic solvents.
4. Weather resistance: has the best aging life among plastics.
5. High lubrication: It is the one with the lower friction coefficient among solid materials.
6. Non-adhesive: It has the smallest surface tension among solid materials and does not adhere to any substance.
7. Non-toxic: It is physiologically inert and has no adverse reactions when used as artificial blood vessels and organs for long-term implantation in the body.
