Product Introduction

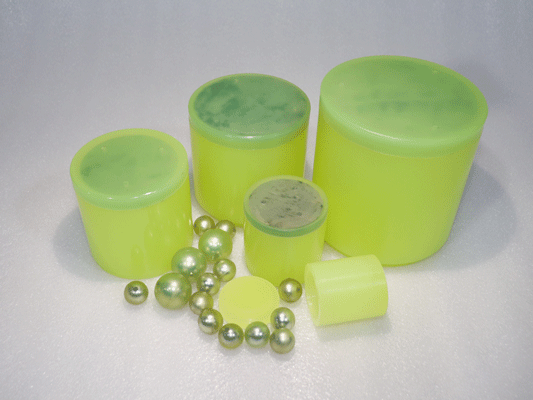

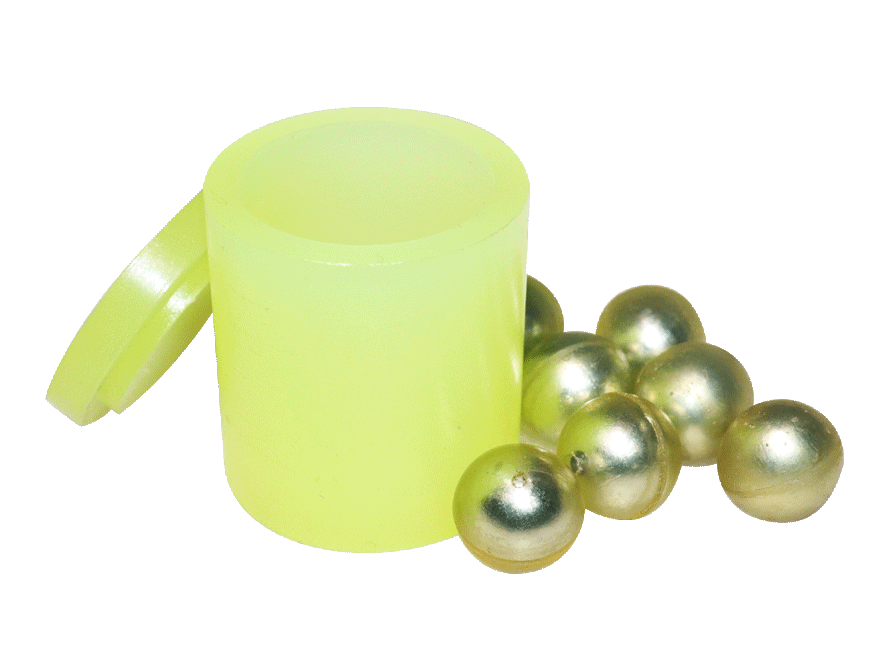

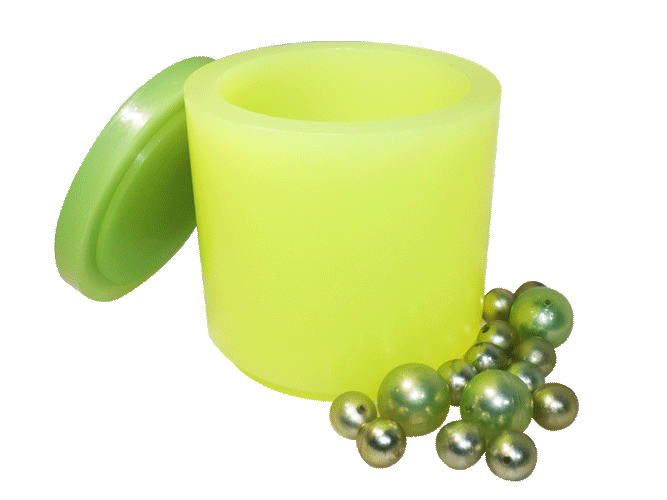

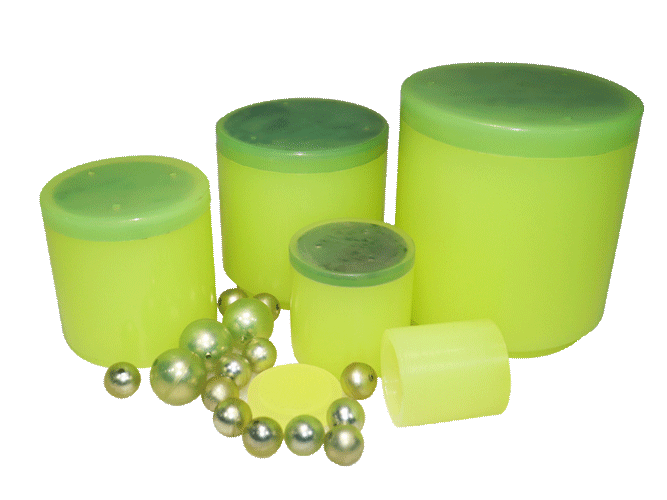

Highly wear-resistant polyurethane ball mill jars are grinding jars with excellent performance in the electronics industry and battery materials. During use, the jar body is not likely to bring harmful impurities into the grinding materials, ensuring the quality of electronic products. The polyurethane ball mill tank developed by our company has an integral structure, generous arc angles, thick tank walls, easy sealing and tight sealing, transparent tank body, beautiful appearance, strong and durable. It is not easy to cause gap leakage, material storage dead corners and other undesirable phenomena during use.
Technical parameters
| Model specifications | Outer diameter (mm) | Inner diameter (mm) | Height(mm) |
|---|---|---|---|
| 100ML | 68 | 53 | 69 |
| 250ML | 98 | 74 | 90 |
| 500ML | 106 | 87 | 104 |
| 1L | 132 | 105 | 135 |
| 1.5L | 132 | 116 | 161 |
| 3L | 159 | 139 | 223 |
| 5L | 192 | 168 | 251 |
| 10L | 243 | 219 | 286 |
Note: 1.5L-10L stainless steel, please call for specific wall thickness.
Different specifications can be customized according to customer needs
Product Features
Professional mold opening, integral casting, generous arc angles, thick tank walls, easy sealing and tight sealing, transparent tank body, beautiful appearance, strong and durable. It is not easy to cause gap leakage, material storage dead corners and other undesirable phenomena during use.
