Product Introduction
When the laboratory drum ball mill is working, the grinding media and materials in the cylinder are raised to a certain height with the rotation of the cylinder, and fall away from the cylinder wall due to gravity and fall along a parabola. The materials are crushed under the impact of the grinding media and the friction and shear caused by the rolling and sliding of the grinding media.

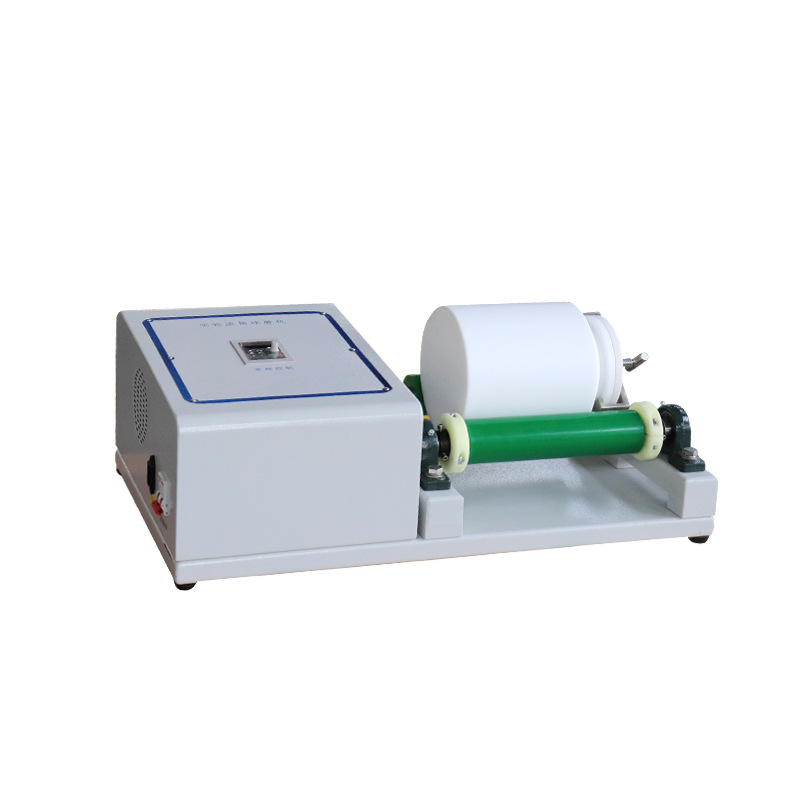

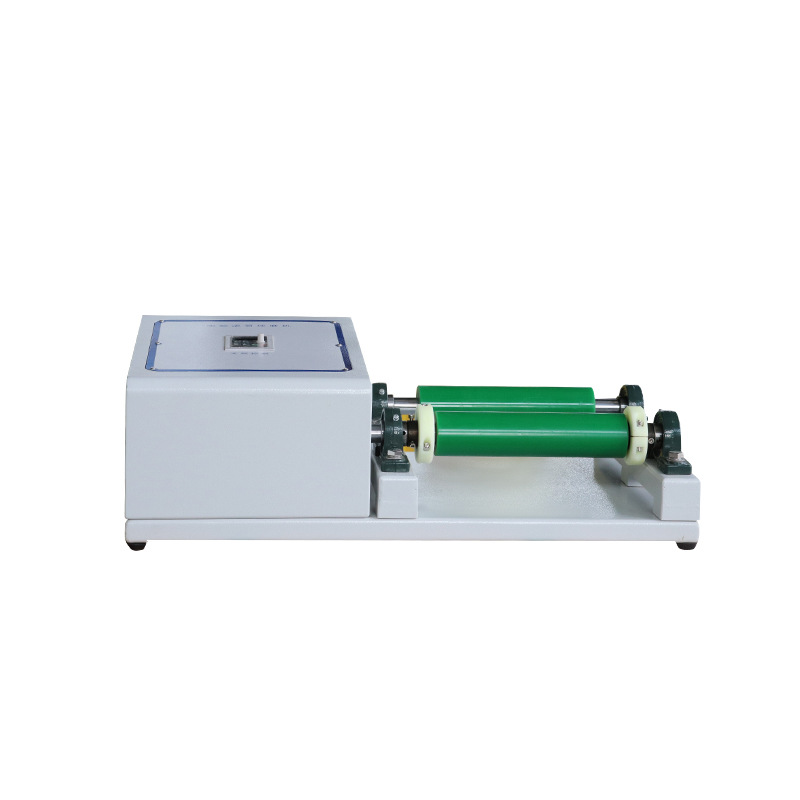

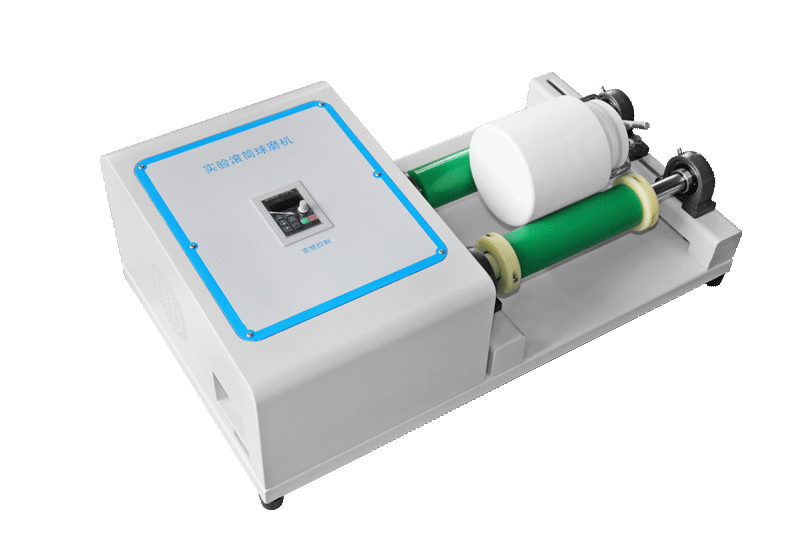

Laboratory drum ball mill is an ultra-fine grinding and mixing equipment used in laboratories and small batch production. This machine is beautiful and novel, has a compact structure, is easy to operate, has high working efficiency, and has uniform grinding size. It is the preferred equipment for scientific research, teaching, testing, and production. It can be widely used in electronic materials, magnetic materials, biomedicine, ceramic glaze slurry, non-metallic minerals, metallic minerals, new materials and other industries.
Technical parameters
| category | model | Overall dimensions (mm) | weight | Motor power | Power specifications | Main roller speed (rpm) | Grinding jar outer diameter range (mm) | Work station adjustment distance (mm) | Polyurethane roller outer diameter (mm) | Single working condition Maximum load |
| Experimental single work station | QM-5 | 730X415X260 | 32KG | 0.37KW | 220V, 50/60HZ single phase | 60~570±10 | Φ70-Φ230 | 200-250 | Φ60 | 22.5KG |
| QM-15 | 845X435X270 | 43KG | 0.75KW | 220V, 50/60HZ single phase | 60~570±10 | Φ75-Φ300 | 295-330 | Φ60 | 60kg | |
| 2 work stations | GQM-2-5 | 950X480X685 | 59KG | 0.75KW | 220V, 50/60HZ single phase | 50~410±10 | Φ70-Φ230 | 235-280 | Φ60 | 22.5KG |
| GQM-2-15 | 1130X550X690 | 80KG | 1.1KW | 220V, 50/60HZ single phase | 40~365±10 | Φ75-Φ300 | 295-370 | Φ60 | 60kg | |
| GQM-2-20 | 1350X650X690 | 92KG | 1.5KW | 220V, 50/60HZ single phase | 40~340±10 | Φ80-Φ300 | 420-480 | Φ60 | 80KG | |
| 4 workstations | GQM-4-5 | 950X660X690 | 70KG | 0.75KW | 220V, 50/60HZ single phase | 50~410±10 | Φ70-Φ230 | 235-280 | Φ60 | 22.5KG |
| GQM-4-5 (double layer) | 950X480X870 | 92KG | 0.75KW | 220V, 50/60HZ single phase | 50~410±10 | Φ70-Φ230 | 235-280 | Φ60 | 22.5KG | |
| GQM-4-15 | 1130X800X690 | 95KG | 1.5KW | 220V, 50/60HZ single phase | 40~365±10 | Φ75-Φ300 | 295-370 | Φ60 | 60kg | |
| GQM-4-20 | 1350X820X690 | 122KG | 2.2KW | 380V, 50/60HZ Three phases | 40~340±10 | Φ80-Φ300 | 420-480 | Φ60 | 80KG | |
| 8 work stations | GQM-8-5 | 950X660X960 | 106KG | 1.5KW | 220V, 50/60HZ single phase | 50~410±10 | Φ70-Φ230 | 235-280 | Φ60 | 22.5KG |
| GQM-8-15 | 1130X800X960 | 152KG | 2.2KW | 380V, 50/60HZ Three phases | 40~365±10 | Φ75-Φ300 | 295-370 | Φ60 | 60kg |
* The contents of the above table are reference technical parameters. For specific parameter values, please contact our salesperson or technical personnel for communication and confirmation.;

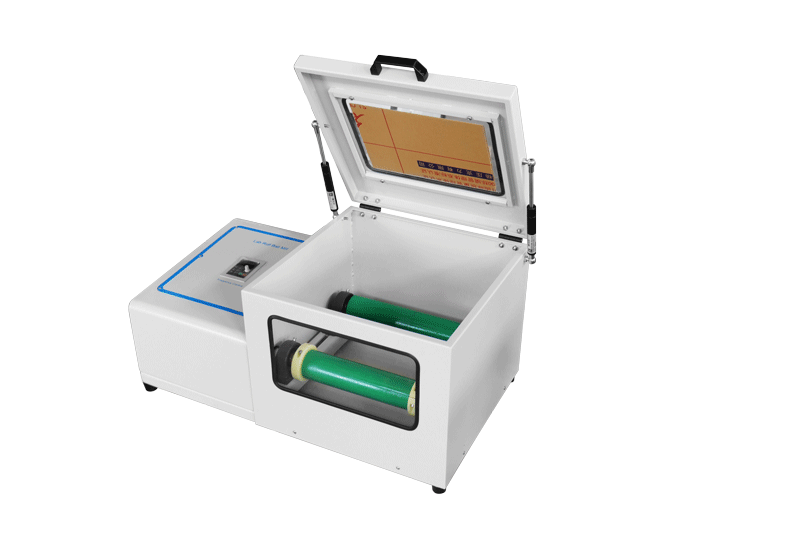

* Optional: [Hand Crank Device] and [Auxiliary Rotation] only support 2 stations, 4 stations, and 8 stations. ; [Protective Cover] Supports the purchase of all series ;
Product Features
1. This machine has compact structure and simple operation;
2. High working efficiency and uniform grinding particle size ;

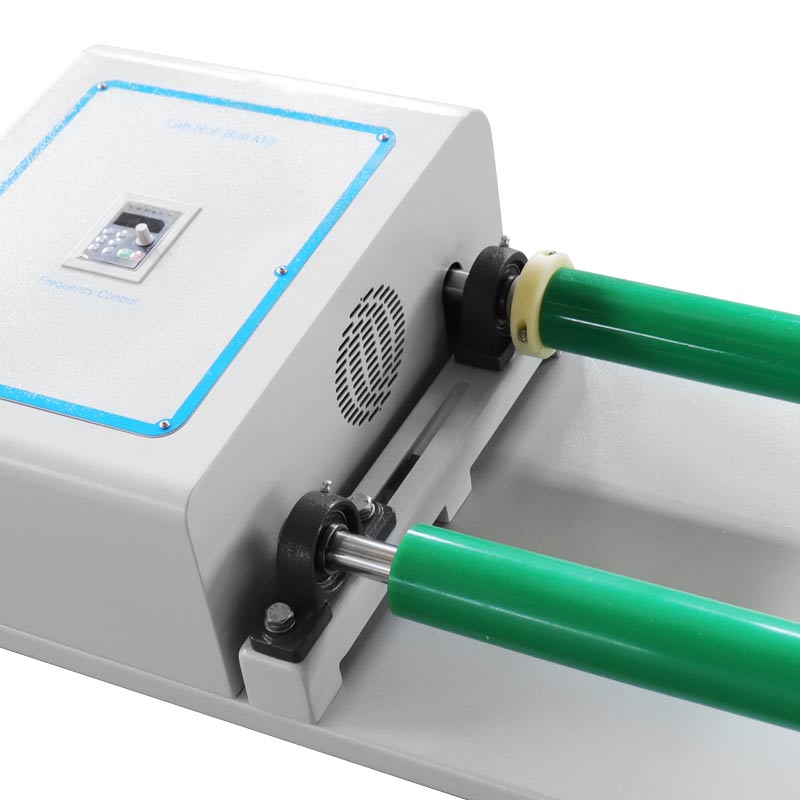

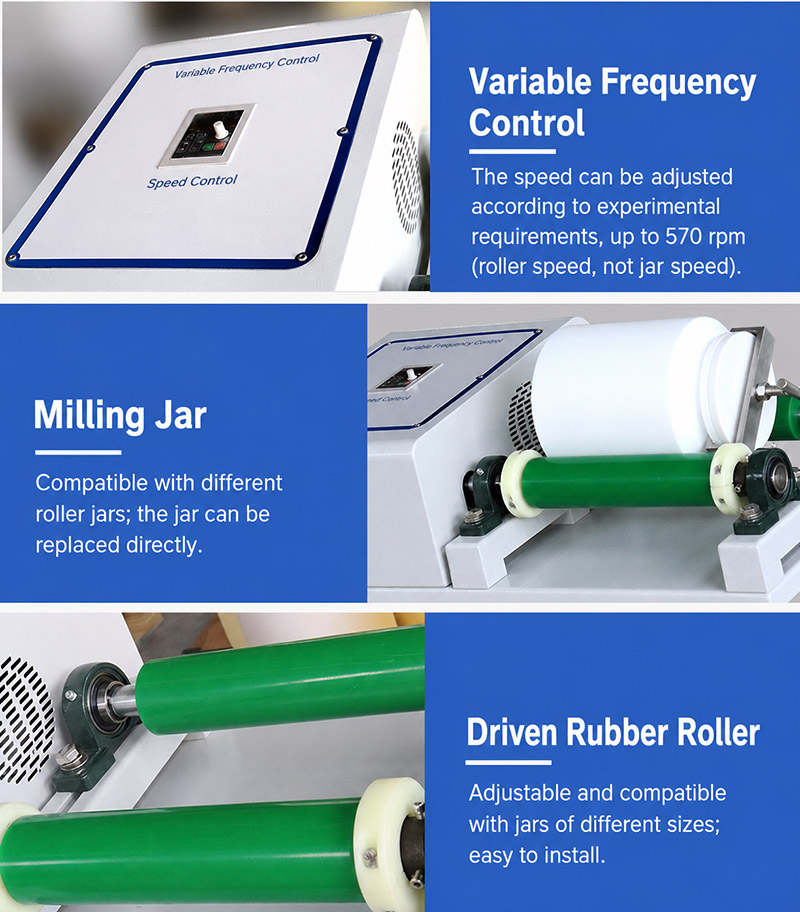

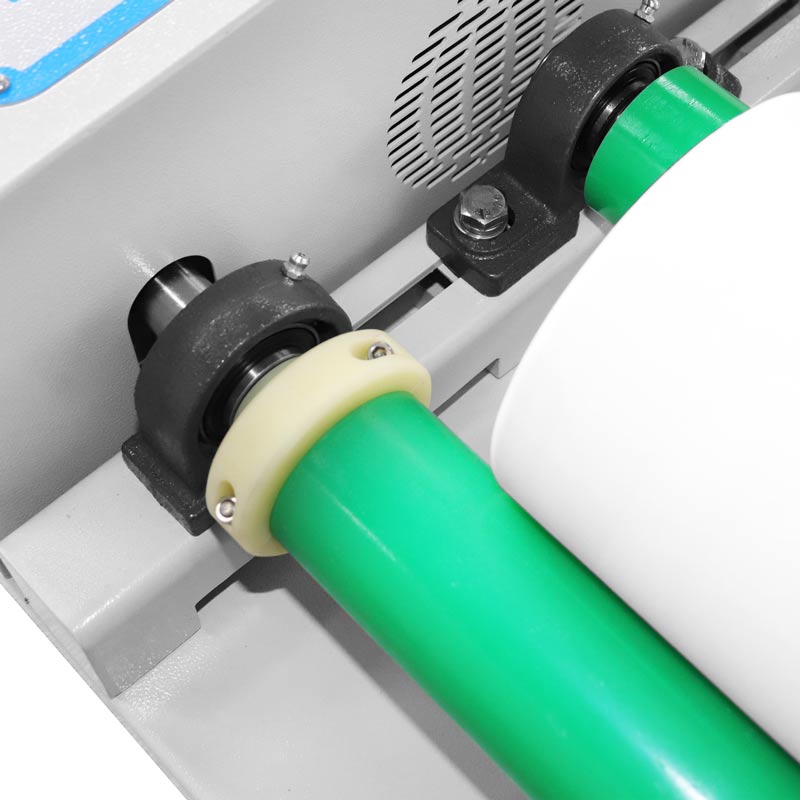

3. By adjusting the driven rubber roller, ball mill tanks with different outer diameters within a certain range can be used. ;
4. It is easy to change the can, and can be used for dry or wet grinding.
