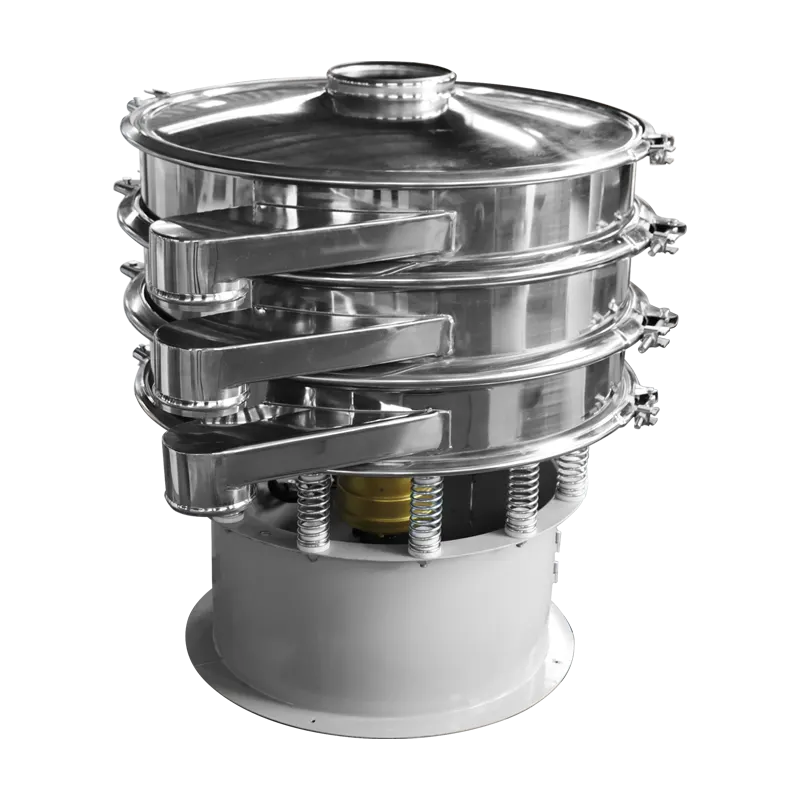

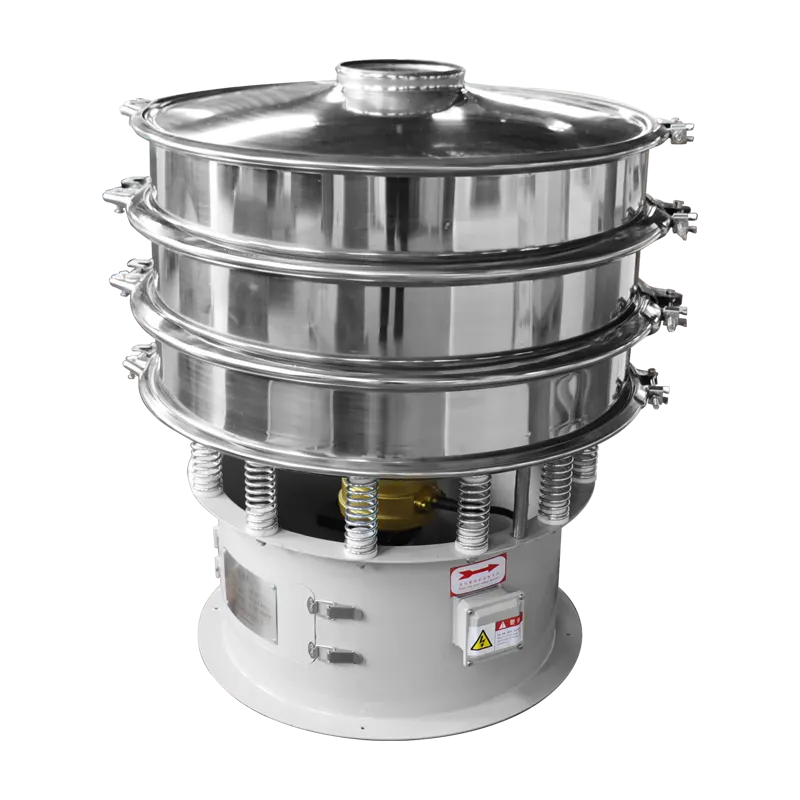

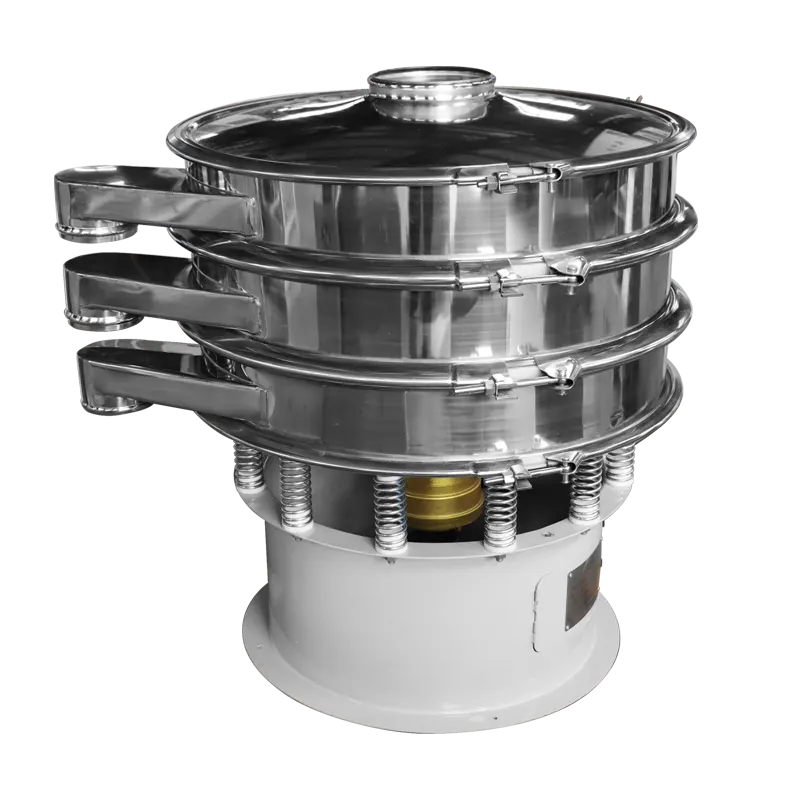

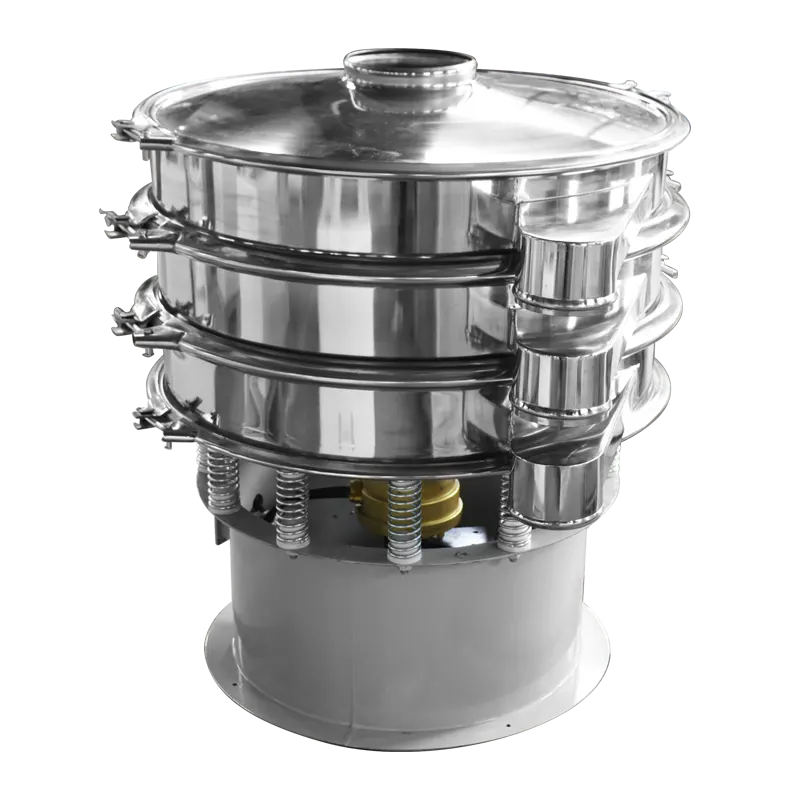

Product Introduction
The three-dimensional rotary vibrating screen uses an upright motor as the excitation source. Eccentric weights are installed on the upper, lower and both ends of the motor to convert the rotational motion of the motor into horizontal, vertical and tilted three-dimensional motion, and then transfer this motion to the screen surface. Adjusting the phase angles of the upper and lower ends can change the movement trajectory of the material on the screen surface.
Technical parameters
| model | Effective diameter (mm) | Effective screening area (㎡) | Number of screening layers | Maximum material size (mm) | Screen specifications (mm) | Vibration frequency (r/min) | Double amplitude (mm) | Vibration force (N) | Motor power (Kw) | Screening efficiency% | Production (flour) kg/h |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ZS-600 | 560 | 0.23 | 1-5 | 50 | 0.02~50 | 1440 | 2~3 | 5000 | 0.55 | 85-95 | 85-95 |
| ZS-800 | 760 | 0.44 | 1-5 | 50 | 0.02~50 | 1440 | 2~3 | 8000 | 0.75 | 85-95 | 85-95 |
| ZS-1000 | 930 | 0.68 | 1-5 | 50 | 0.02~50 | 1440 | 2~3 | 10000 | 0.75 | 85-95 | 85-95 |
| ZS-1200 | 1130 | 1 | 1-5 | 50 | 0.02~50 | 1440 | 2~3 | 15000 | 1.1 | 85-95 | 85-95 |
| ZS-1500 | 1430 | 1.60 | 1-5 | 50 | 0.02~50 | 1440 | 2~3 | 30000 | 2.2 | 85-95 | 85-95 |
| ZS-1800 | 1750 | 2.4 | 1-5 | 50 | 0.02~50 | 1440 | 2~3 | 50000 | 2.2 | 85-95 | 85-95 |
Working Principle

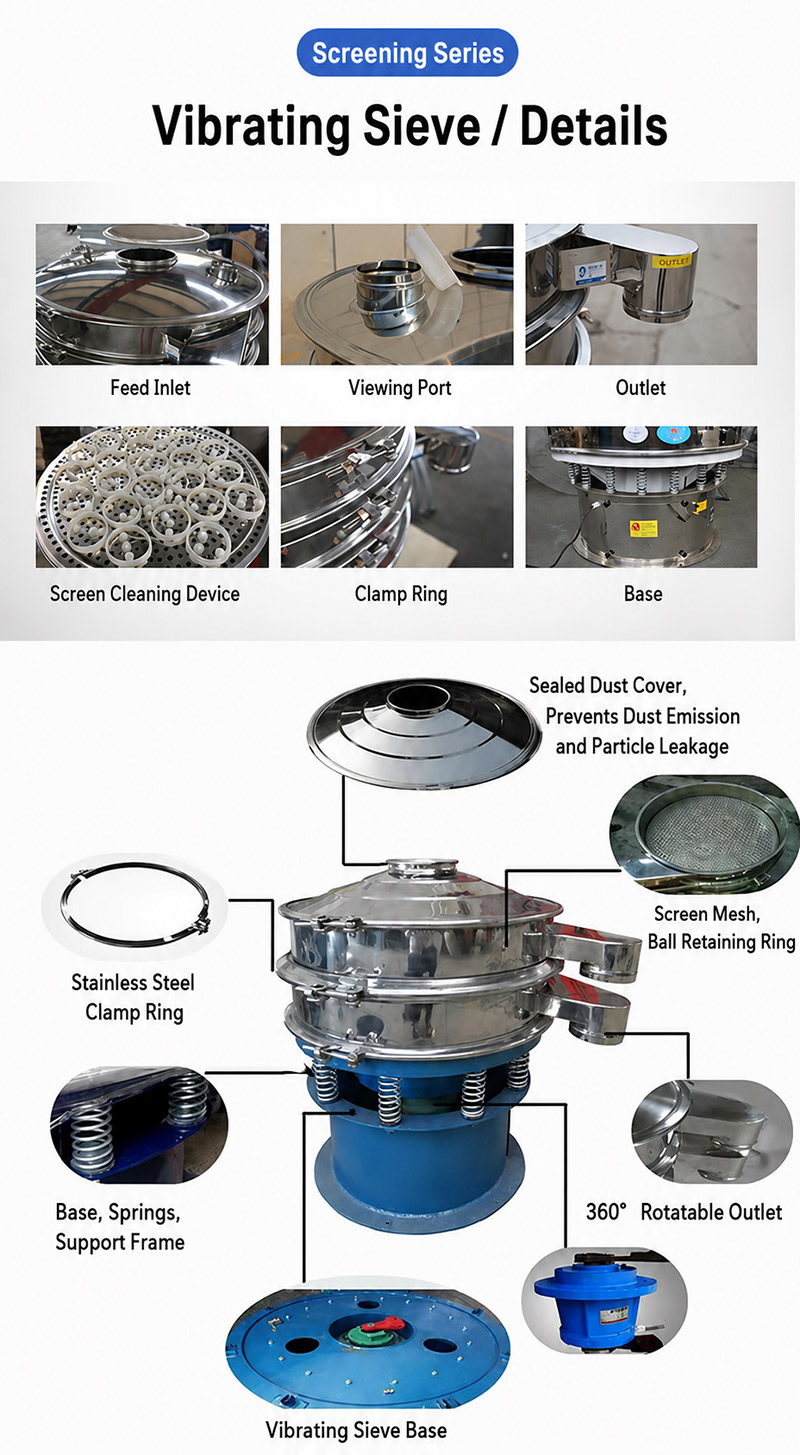

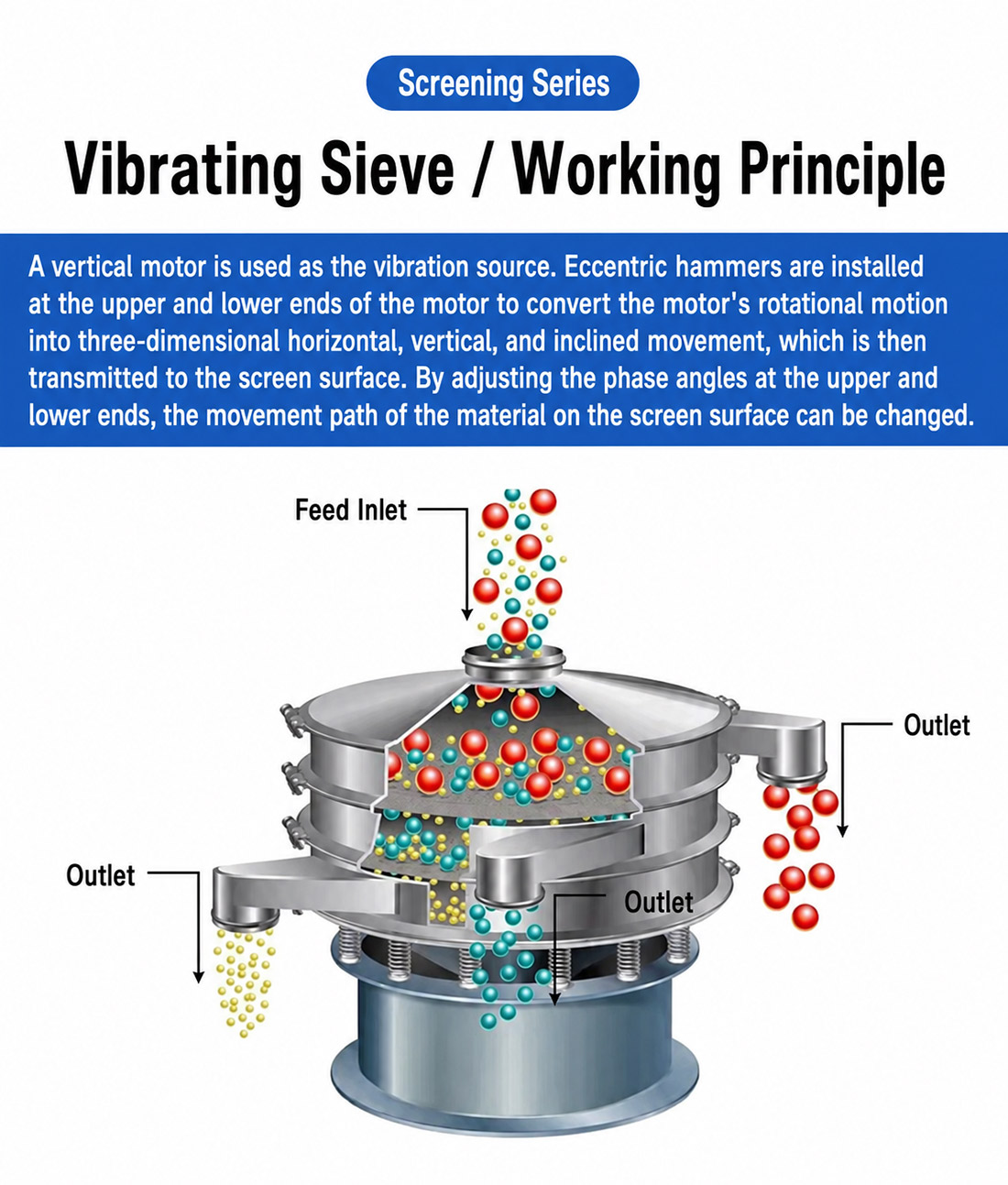

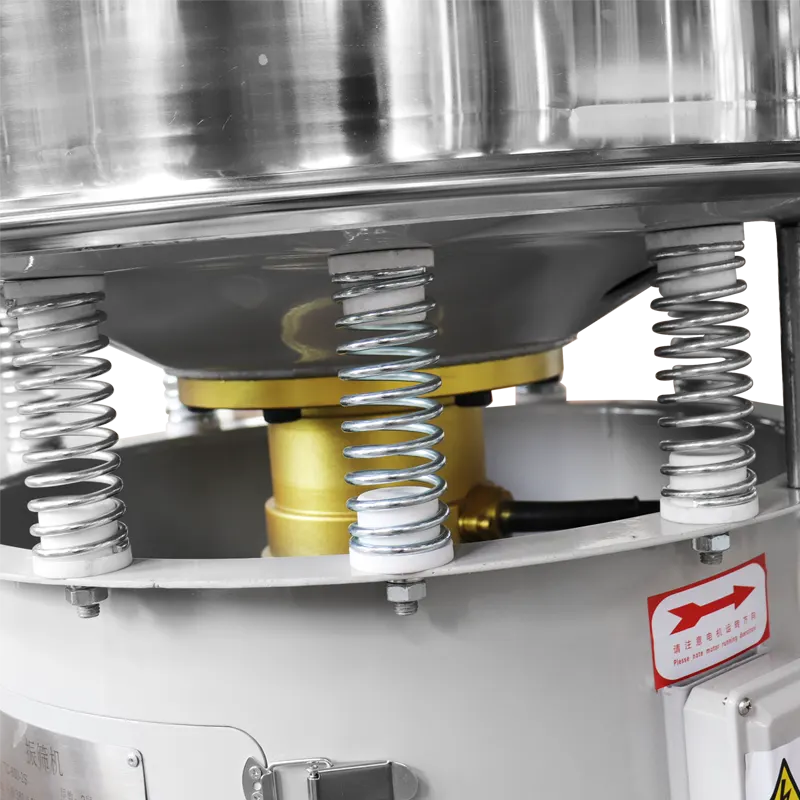

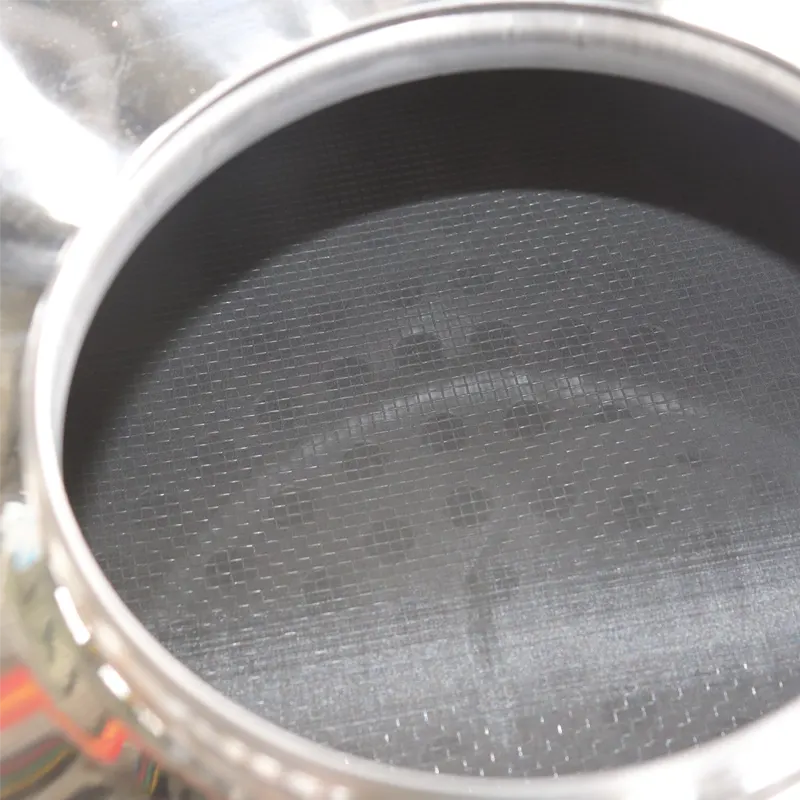

The three-dimensional rotary vibrating screen uses an upright motor as the excitation source. Eccentric weights are installed on the upper, lower and both ends of the motor to convert the rotational motion of the motor into horizontal, vertical and tilted three-dimensional motion, and then transfer this motion to the screen surface. Adjusting the phase angles of the upper and lower ends can change the movement trajectory of the material on the screen surface.
