Product Introduction

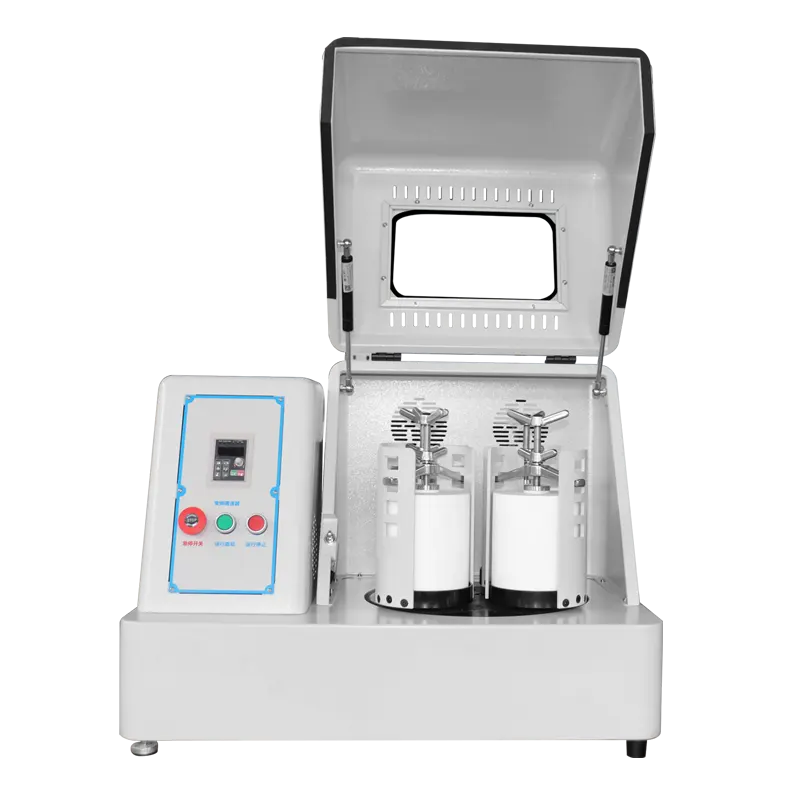

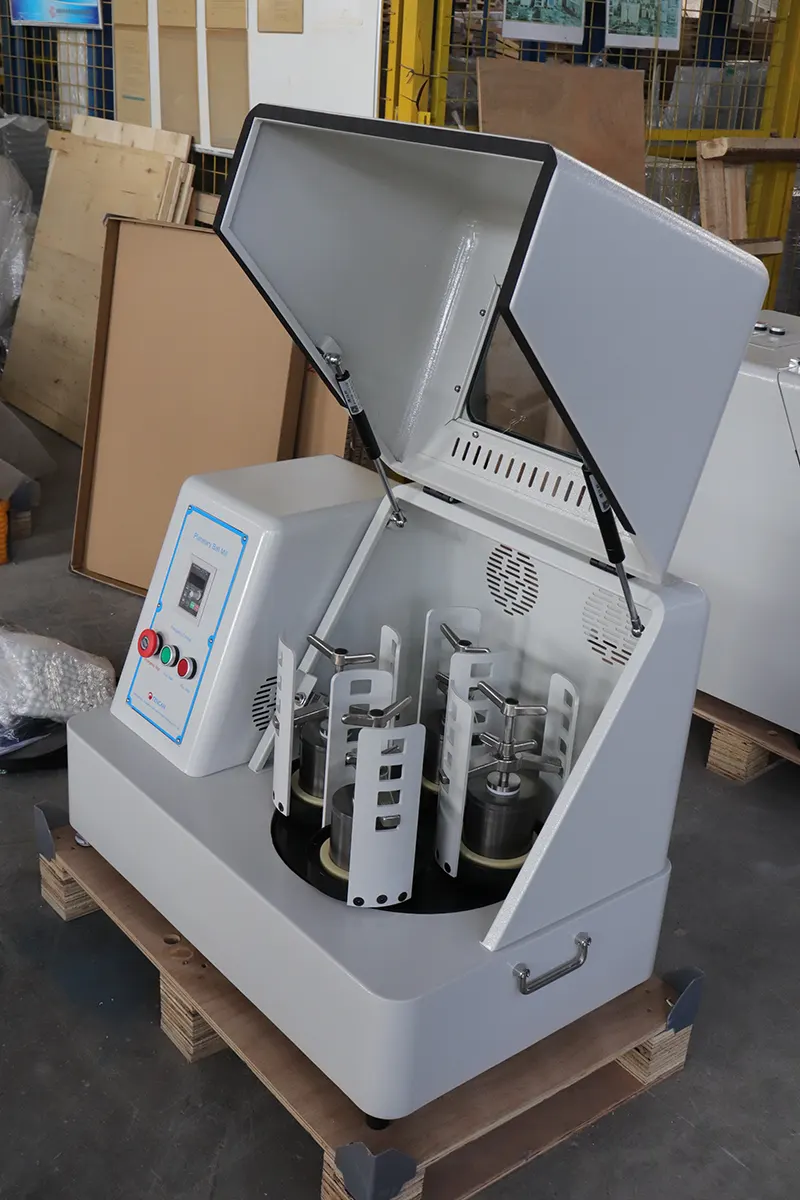

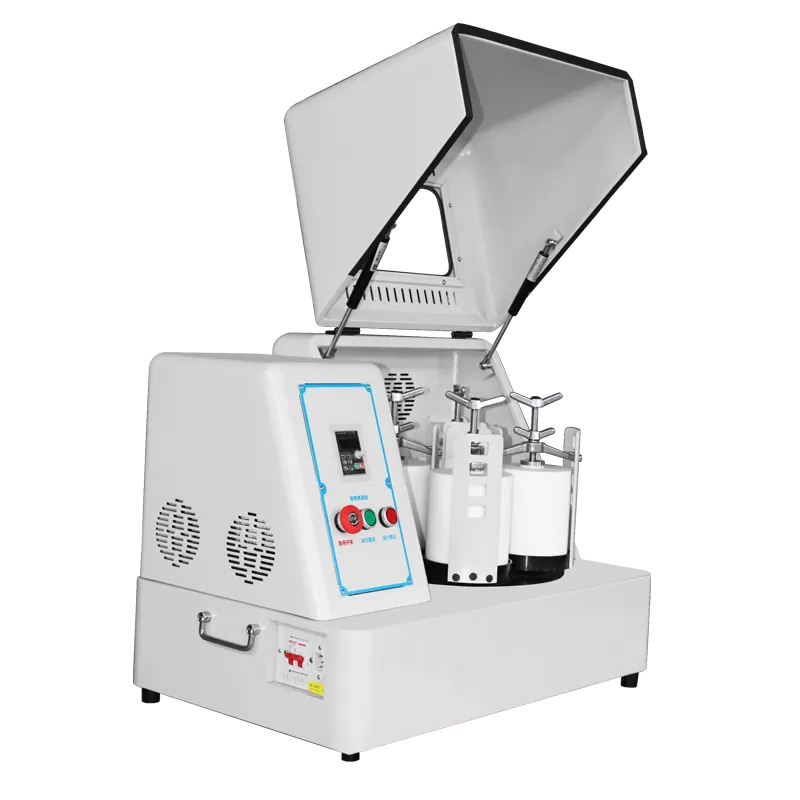

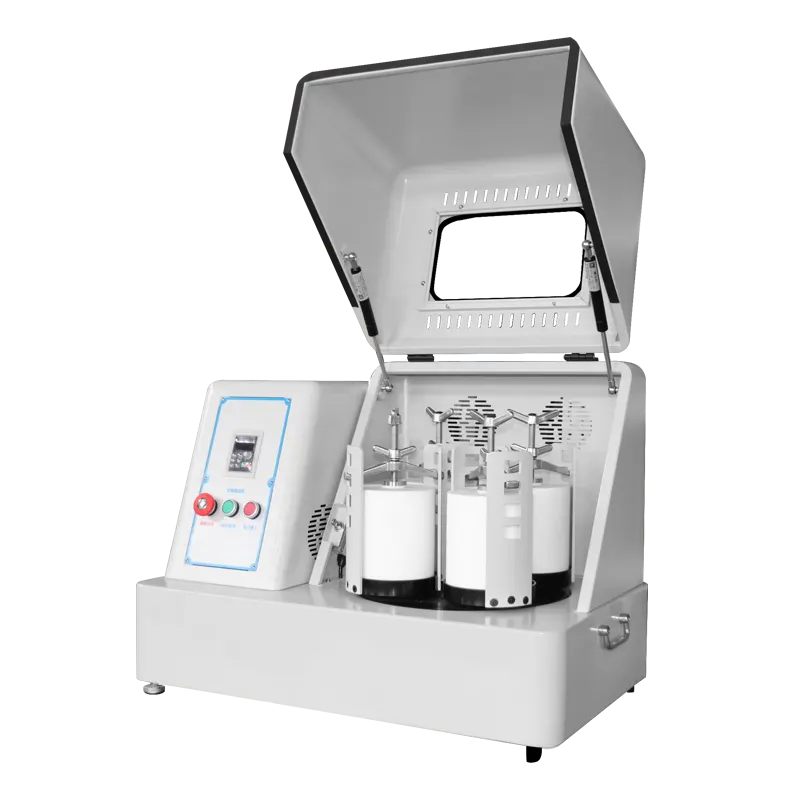

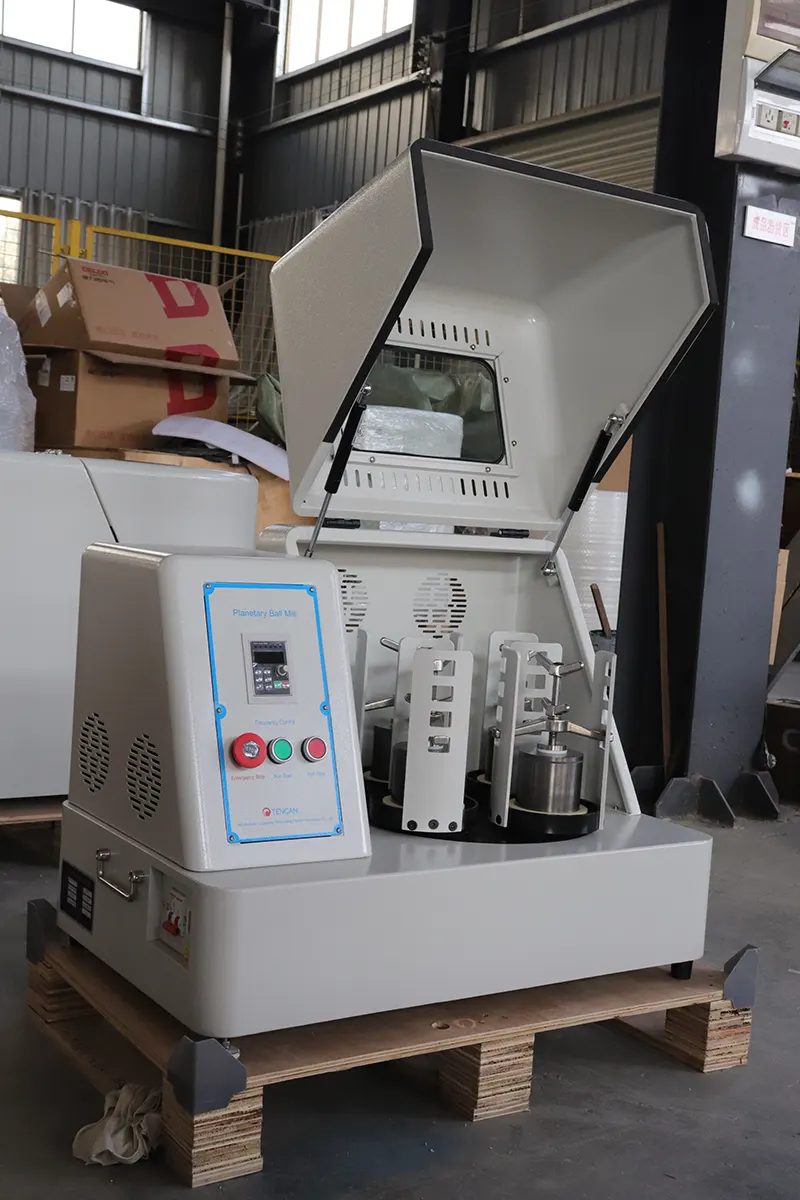

Planetary ball mill is an efficient and precise laboratory-grade powder preparation equipment, mainly used for crushing, mixing, dispersing materials and preparing nanomaterials. Its core structure includes planetary disk, ball mill tank, grinding ball, drive system and safety device. The equipment achieves efficient grinding of materials through the compound motion of the planetary wheel's revolution and rotation, combined with high-energy impact and friction. The semicircular ball mill tank design further optimizes space utilization and grinding efficiency, and is suitable for small batch and high-precision experimental requirements.
Planetary ball mill Widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other departments, suitable for electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganate, catalysts, phosphors, long afterglow luminescent powder, rare earth polishing powder, electronic glass powder, fuel cells, zinc oxide varistors , piezoelectric ceramics, nanomaterials, wafer ceramic capacitors, MLCC, thermistors (PTC, NTC), ZnO varistors, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphors, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and other products.
Technical parameters
| serial number | model | shape | Grinding tank rotation speed (mm) | Inner diameter of grinding pot seat (mm) | Motor power | Grinding jar revolution diameter (mm) | Overall dimensions (mm) | Net weight(kg) |
|---|---|---|---|---|---|---|---|---|
| 1 | XQM-0.2 | Miniature | 0~1160 | 50 | 90W | F111 | 420×260×310 | 25 |
| 2 | XQM-0.2S | Mini glove box | 0~1160 | 50 | 90W | F111 | Equipment: 390×220×270 Control box: 200×180×240 | 29 |
| 3 | XQM-0.4A | semicircle style | 0~870 | 80 | 250W | Φ140 | 530×300×360 | 34 |
| 4 | XQM-6 | 0~670 | 134 | 0.75KW | F234 | 760×470×580 | 100 | |
| 5 | XQM-4A | semicircle style | 0~670 | 134 | 0.75KW | F234 | 760×470×600 | 85 |
| 6 | XQM-(8-12) | 0~580 | 162 | 1.5KW | Φ275 | 900×600×640 | 168 | |
| 7 | XQM-(8-12)A | semicircle style | 0~580 | 162 | 1.5KW | Φ275 | 880×560×642 | 150 |
| 8 | XQM-16A | semicircle style | 0~510 | 182 | 3KW | Φ320 | 950×600×710 | 205 |
| 9 | XQM-20 | 0~430 | 222 | 4KW | F385 | 1200×790×930 | 392 | |
| 10 | XQM-40 | 0~390 | 250 | 5.5KW | Φ430 | 1400×880×1070 | 656 | |
| 11 | XQM-60 | 0~260(1:1.5) | 275 | 7.5KW | Φ490 | 1600×1070×1250 | 950 | |
| 12 | XQM-100 | 0~240(1:1.5) | 326 | 11KW | F578 | 1750×1140×1330 | 1300 | |
| 13 | XQM-200 | 0~215 | 460 | 22KW | Φ738 | 2670×1600×2804 | 2725 |
Product Features

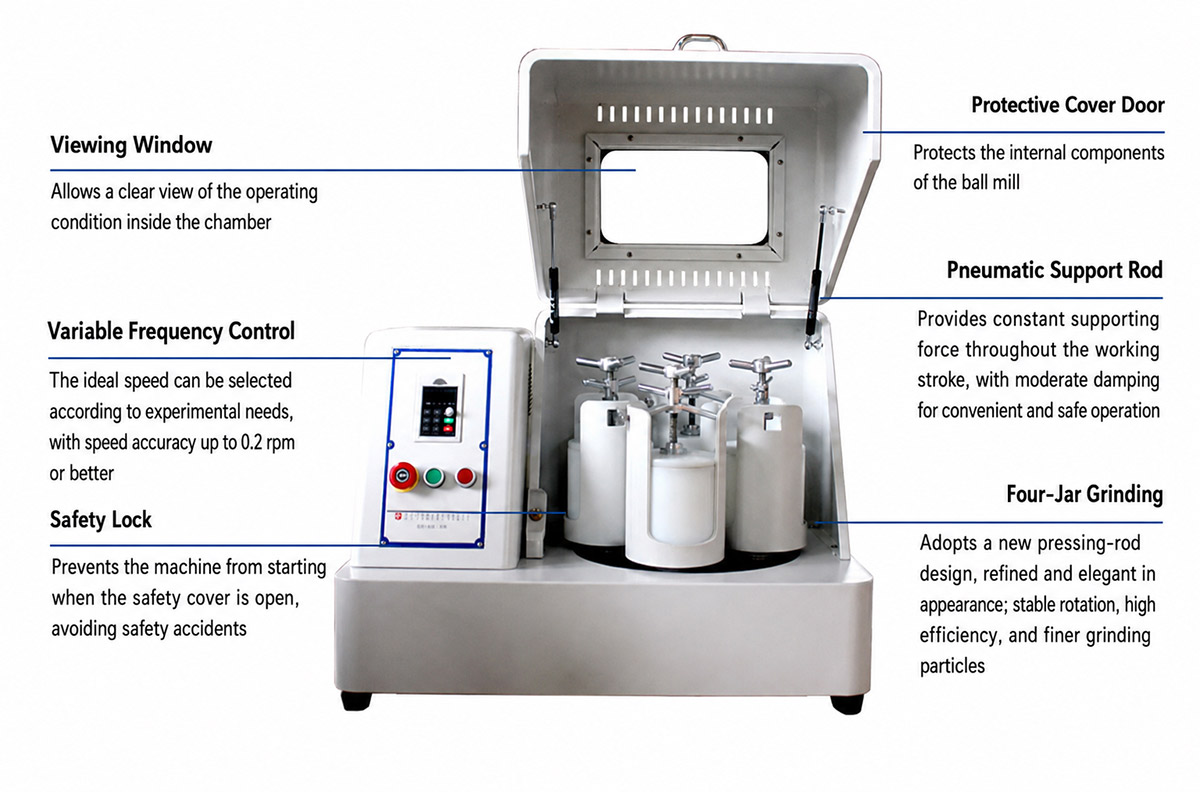

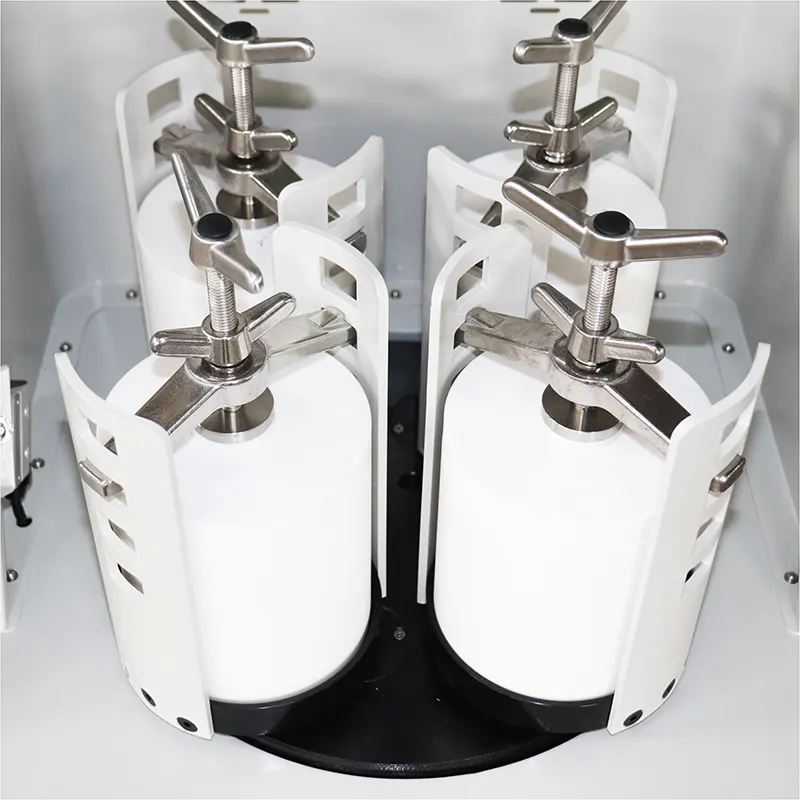

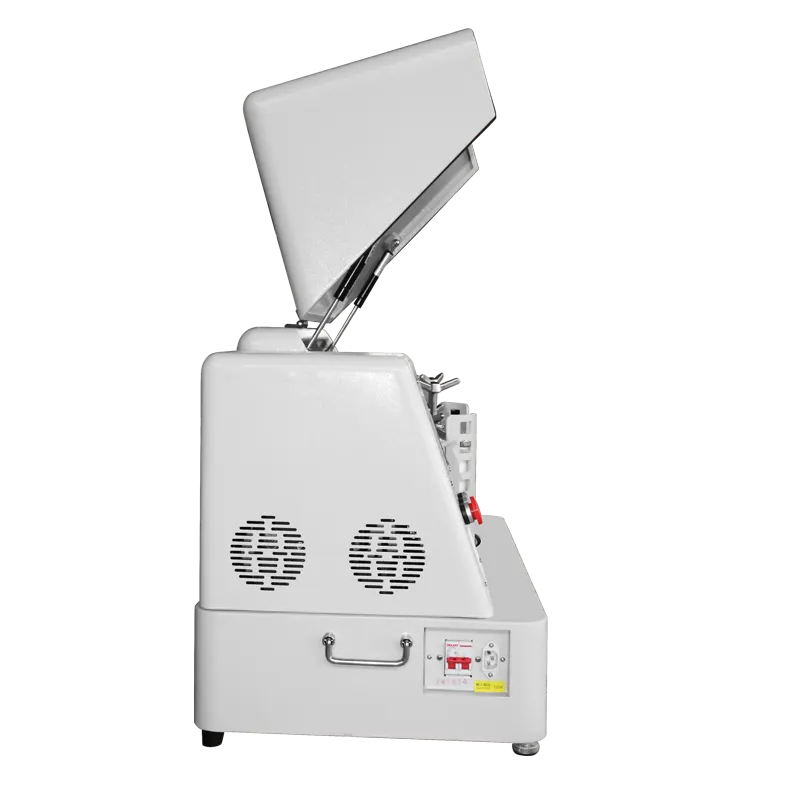

The equipment shell adopts square design elements and is stamped with high-precision molds. It is generous and refined, high-end and stable.; The machined parts adopt CNC processing technology, the planetary disk is integrally cast and formed, and the transmission gears are made of special materials and precision gears to ensure smooth and quiet operation of the equipment at high speeds. ; The grinding tank holding device is easy to operate, safe and reliable.
