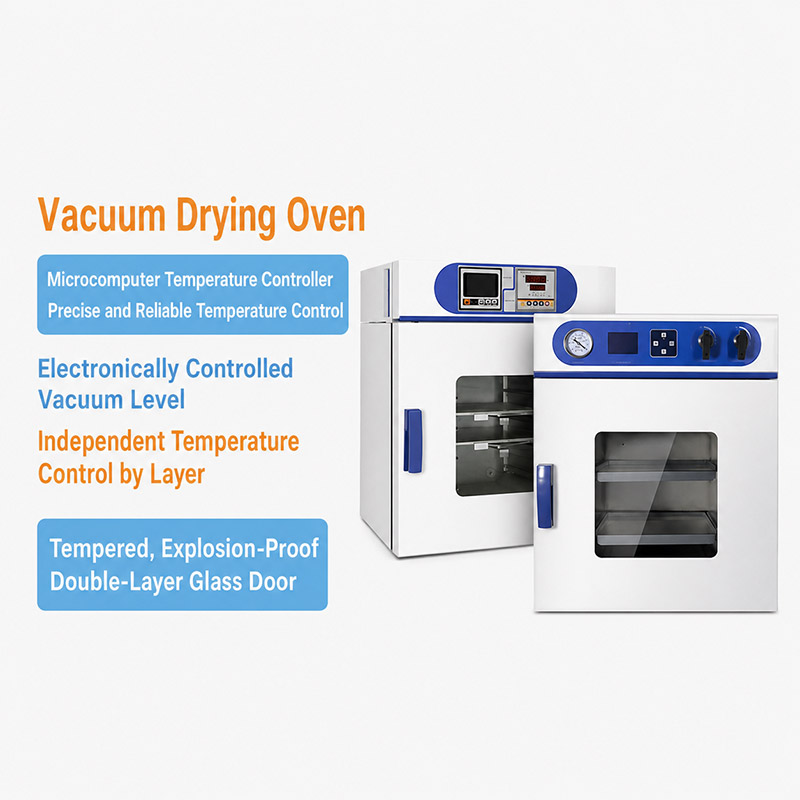

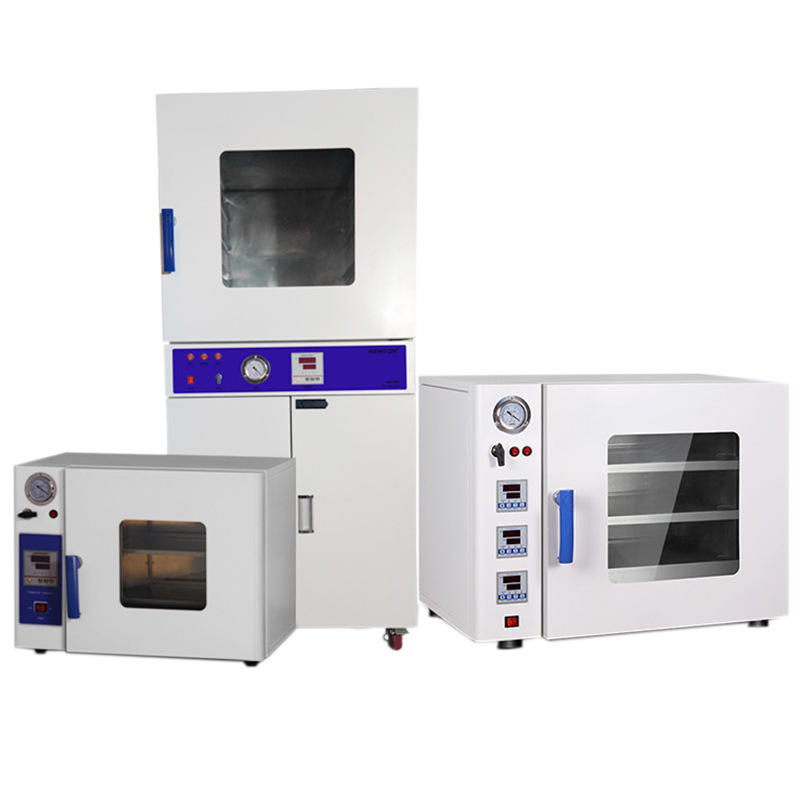

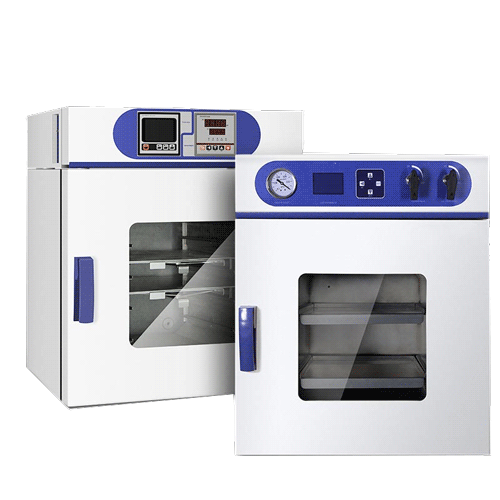

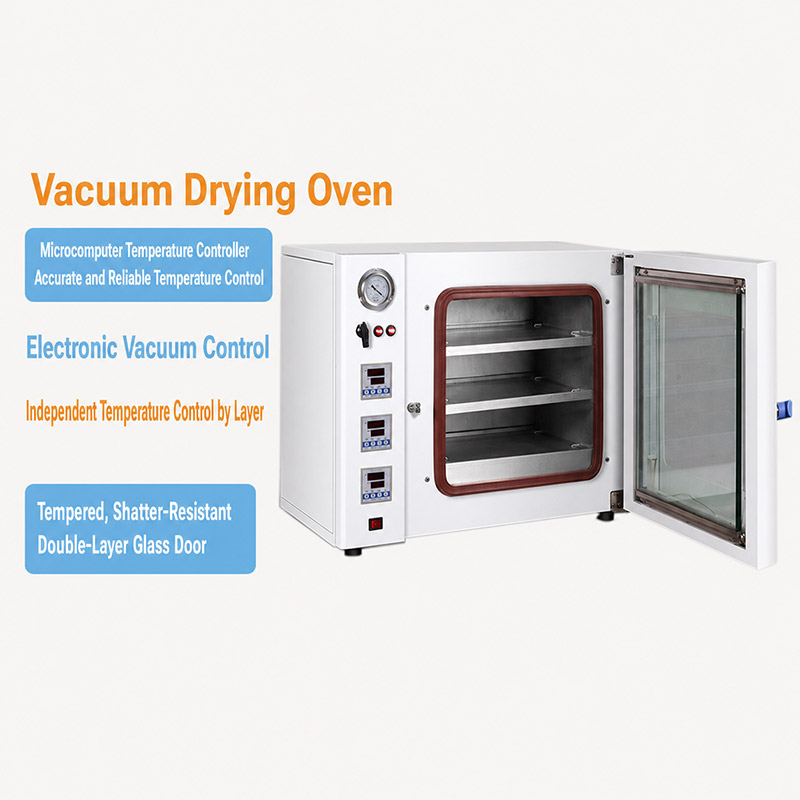

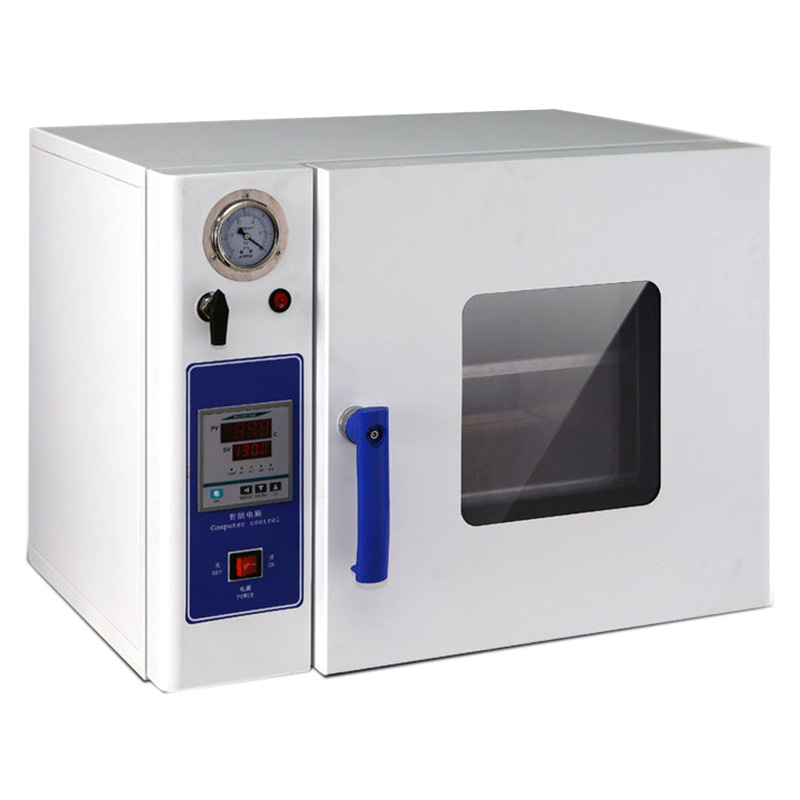

Product Introduction
Vacuum drying ovens are widely used in research and application fields such as biochemistry, chemical pharmaceuticals, medical and health, agricultural scientific research, environmental protection, etc. for powder drying, baking, and disinfection and sterilization of various types of glass containers. It is especially suitable for fast and efficient drying of heat-sensitive, easily decomposed, easily oxidized substances and items with complex components.
Research and application fields such as biochemistry, chemical pharmaceuticals, medical and health, agricultural scientific research, environmental protection, etc.
Technical parameters
Swipe right to see more
| Product name | model | Studio SpecificationsMM (Height × Width × Depth) | Appearance specifications MM (Height × Width × Depth) | Voltage V | PowerKW | temperature℃ | Vacuum degree Pa | Accuracy℃ | Volatility℃ | Packing weightKG (Including wooden frame) | Remark |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Vacuum drying oven (cold rolled plate liner) | DZF-6020 | 310×265×280 | 450×635×465 | 220 | 0.9 | 50~200 | <133 | ±0.5 | ±1% | 52.5 | Digital display intelligent temperature controller, The timing range is 0~999 minutes. Optional vacuum pump |
| DZF-6050 | 400×370×350 | 570×750×515 | 220 | 1.4 | 50~200 | <133 | ±0.5 | ±1% | 75 | ||
| DZF-6090 | 485×440×425 | 620×780×600 | 220 | 2.4 | 50~200 | <133 | ±0.5 | ±1% | 112 | ||
| Vacuum drying oven (stainless steel liner) | DZF-6020S | 310×265×280 | 450×635×465 | 220 | 0.9 | 50~200 | <133 | ±0.5 | ±1% | 52.5 | |
| DZF-6050S | 400×370×350 | 570×750×515 | 220 | 1.4 | 50~200 | <133 | ±0.5 | ±1% | 75 | ||
| DZF-6090S | 485×440×425 | 620×780×600 | 220 | 2.4 | 50~200 | <133 | ±0.5 | ±1% | 112 |
Product Features

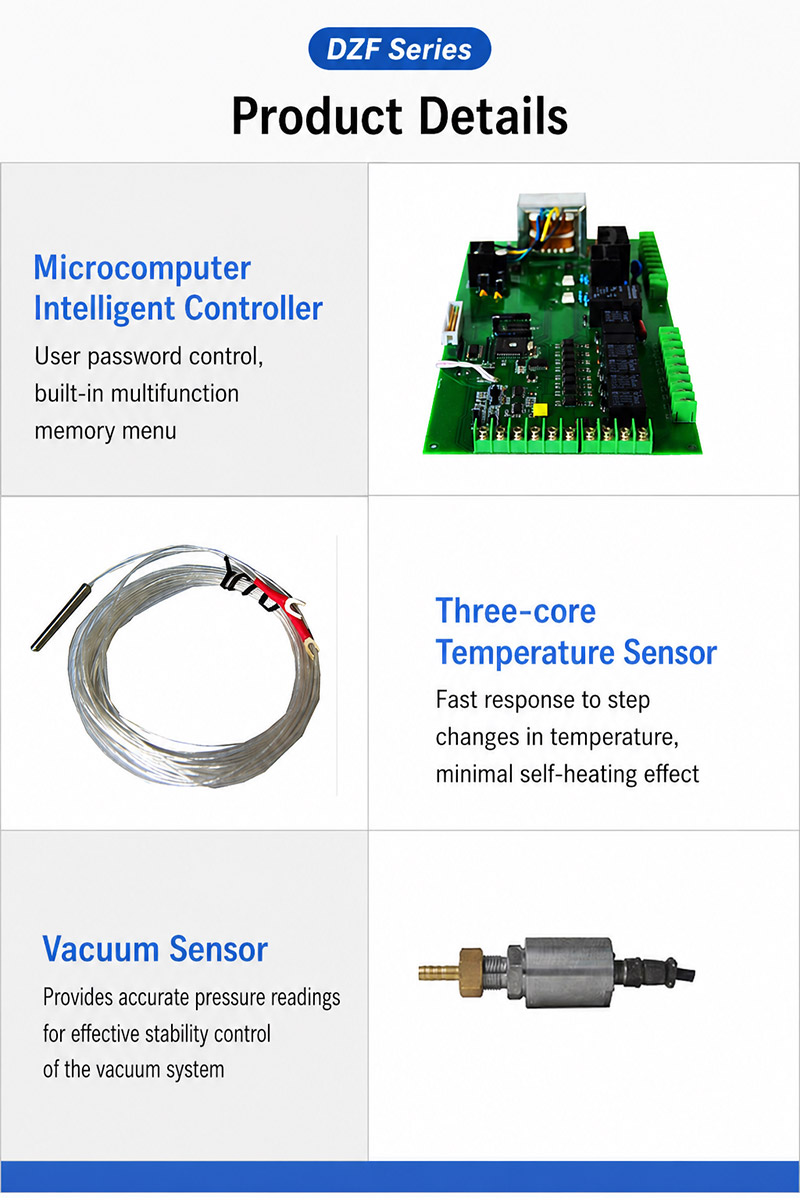

- Cuboid studio, microcomputer temperature controller, precise and reliable temperature control.
- The tempered and bulletproof double-glazed doors provide a clear view of objects in the studio.
- The tightness of the box door can be adjusted, and the integrally formed silicone rubber door seal ensures a high vacuum inside the box.
- The studio is made of stainless steel plate (or brushed plate) to ensure the product is durable.
- Storage, heating, testing and drying are all carried out in an environment without oxygen or filled with inert gas, so there will be no oxidation.
- The shortest heating time, the heating time is reduced by more than 50% compared with traditional vacuum drying oven | vacuum oven.
