Product Introduction

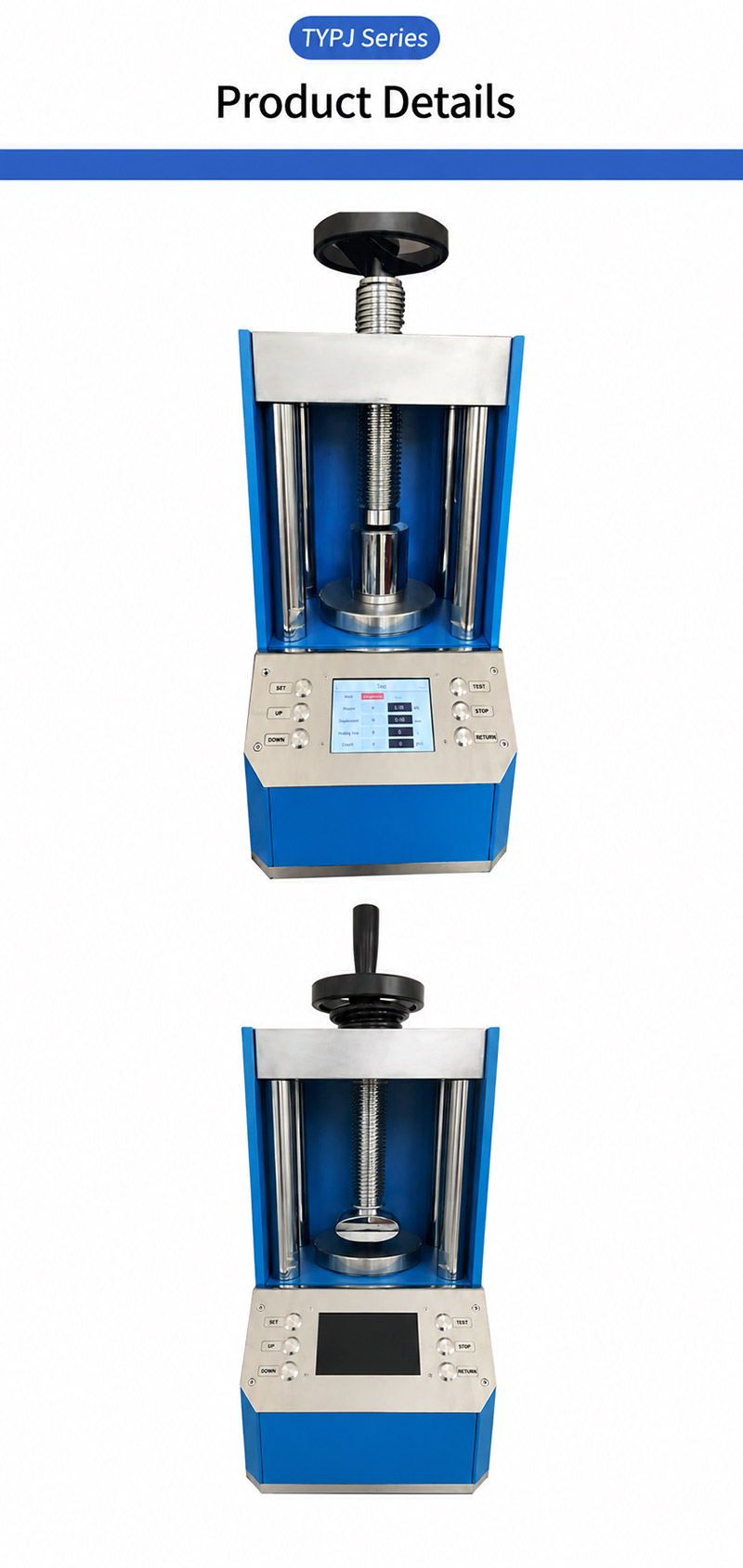

The fully automatic powder tablet press is a new type of intelligent laboratory tablet press developed based on a combination of manual and electric tablet presses. Equipped with appropriate mold accessories, it can meet the needs of users in pressure molding of powder samples. It is widely used in the analysis and research of new materials such as X-fluorescence, calcium-iron analysis, superconductivity, building materials, powdered ceramics, cement, etc. It is an alternative to existing manual and electric tablet presses and is deeply loved by users.
Technical parameters
Swipe right to see more
| Device model | TYPJ-20S | TYPJ-30S | TYPJ-40S | TYPJ-60S |
|---|---|---|---|---|
| pressure range | 1-20T/0.1t | 1-30T/0.1t | 1-40T/0.1t | 1-60T/0.1t |
| Cylinder stroke | 30mm | 30mm | 50mm | 50mm |
| Pressure method | Electric pressurization | |||
| Pressurization process | Intelligent and fully automatic, programmed pressure/slow pressure-programmed pressure maintenance-programmed pressure replenishment-timed pressure relief | |||
| Display mode | 4.3-inch LCD display | |||
| Holding time | 0-999.59 (minutes.seconds) | |||
| pressure conversion | The program automatically converts and displays the pressure of the mold sample (Mpa) | |||
| Limit protection | The oil cylinder will automatically release pressure when it reaches the limit height to protect the oil cylinder. | |||
| Equipment protection | Steel plate protection, equipped with plexiglass protective door | |||
| overall structure | One-piece structure | |||
| Device power supply | 220V（50Hz/60Hz） | |||
| workspace | 140×160mm | 140×160mm | 175×180mm | 185×220mm |
| Overall dimensions | 230×390×420mm | 230×390×420mm | 280×460×550mm | 300×520×580mm |
| Equipment weight | 90kg | 95kg | 150kg | 180kg |
| Standard configuration | 1 tablet press host, mold selection | |||
