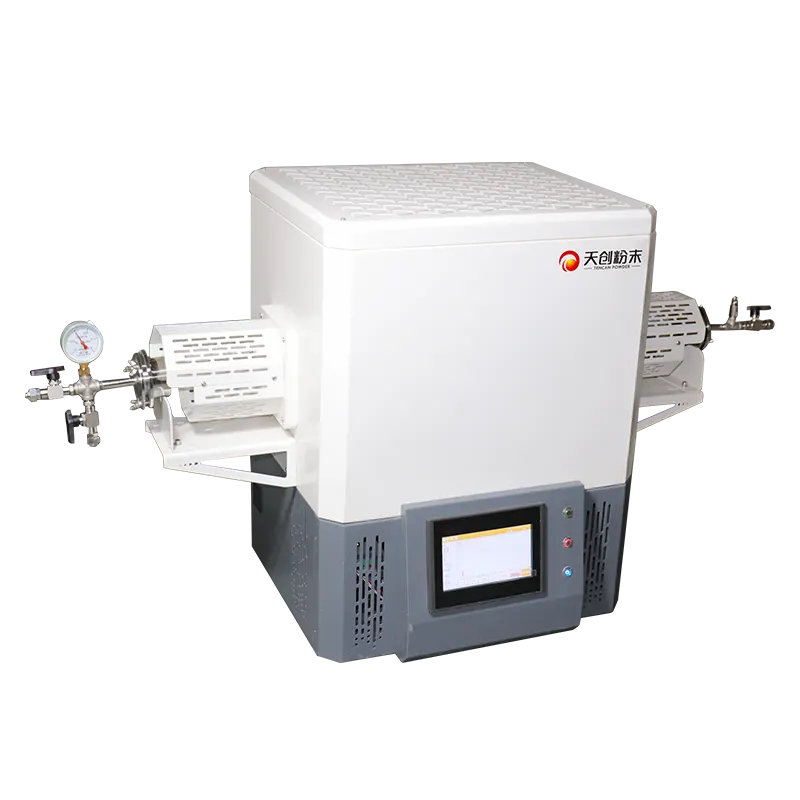

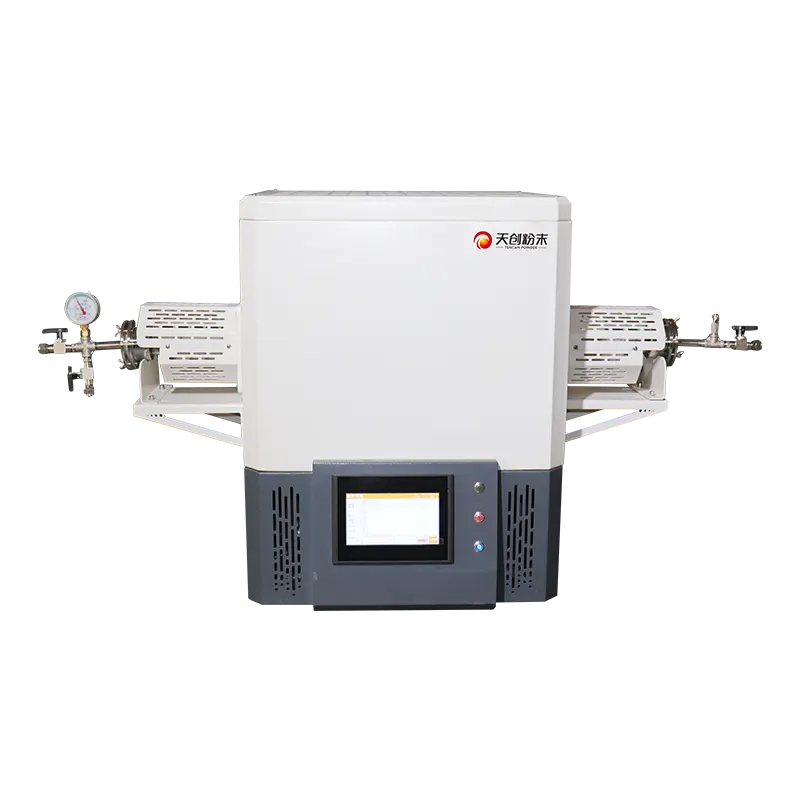

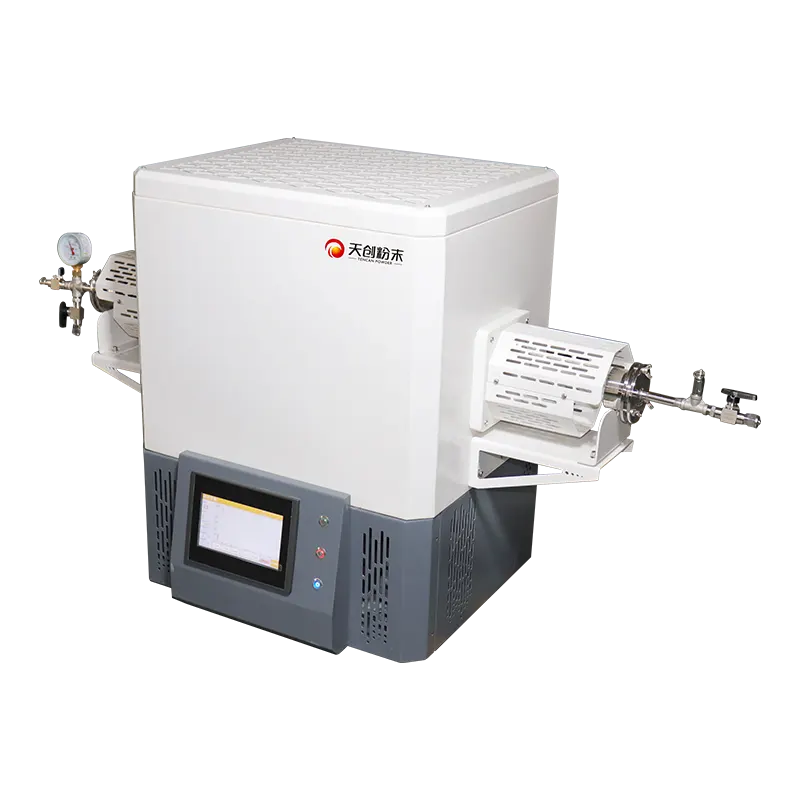

Product Introduction
Tianchuang vacuum tube furnace uses high-purity quartz tubes or high-purity alumina tubes as furnace tubes. The operating temperature range is 300°C to 1600°C. Customers can choose according to actual needs. This series of equipment has the characteristics of safety and reliability, simple operation, high temperature control accuracy, good heat preservation effect, high furnace temperature uniformity, and can be vacuumed through the atmosphere. It is widely used in colleges and universities, scientific research institutes, industrial and mining enterprises for high-temperature sintered metal material processing experiments, quality inspection and small batch production.
Technical parameters
Standard 1200 type:
| model | Furnace tube diameter x heating zone length (mm) | Power (kW) | Maximum temperature (℃) | Working temperature (℃) | Thermocouple | Furnace tube material | heating element |
| TC-12NT-40/300 | 40x300 | 3 | 1200 | 1100 | K type | quartz tube | Molybdenum resistance wire |
| TC-12NT-60/300 | 60x300 | 3 | |||||
| TC-12NT-80/300 | 80x300 | 5 | |||||
| TC-12NT-100/300 | 100x300 | 5 | |||||
| TC-12NT-120/300 | 120x300 | 6 | |||||
| TC-12NT-40/450 | 40x450 | 3 | |||||
| TC-12NT-60/450 | 60x450 | 3 | |||||
| TC-12NT-80/450 | 80x450 | 5 | |||||
| TC-12NT-100/450 | 100x450 | 5 | |||||
| TC-12NT-120/450 | 120x450 | 6 |
Standard 1400 type:
| model | Furnace tube diameter x heating zone length (mm) | Power (kW) | Maximum temperature (℃) | Working temperature (℃) | Thermocouple | Furnace tube material | heating element |
| TC-14ST-40/300 | 40x300 | 4 | 1400 | 1300 | S type | corundum tube | Silicon carbide rod |
| TC-14ST-60/300 | 60x300 | 4 | |||||
| TC-14ST-80/300 | 80x300 | 4 | |||||
| TC-14ST-100/300 | 100x300 | 6 | |||||
| TC-14ST-120/300 | 120x300 | 6 | |||||
| TC-14ST-40/450 | 40x450 | 4 | |||||
| TC-14ST-60/450 | 60x450 | 4 | |||||
| TC-14ST-80/450 | 80x450 | 4 | |||||
| TC-14ST-100/450 | 100x450 | 6 | |||||
| TC-14ST-120/450 | 120x450 | 6 |
Standard 1600 type:
| model | Furnace tube diameter x heating zone length (mm) | Power (kW) | Maximum temperature (℃) | Working temperature (℃) | Thermocouple | Furnace tube material | heating element |
| TC-16MT-40/300 | 40x300 | 4 | 1600 | 1500 | Type B | corundum tube | Silicon molybdenum rod |
| TC-16MT-60/300 | 60x300 | 4 | |||||
| TC-16MT-80/300 | 80x300 | 4 | |||||
| TC-16MT-100/300 | 100x300 | 6 | |||||
| TC-16MT-120/300 | 120x300 | 6 | |||||
| TC-16MT-40/450 | 40x450 | 5 | |||||
| TC-16MT-60/450 | 60x450 | 5 | |||||
| TC-16MT-80/450 | 80x450 | 5 | |||||
| TC-16MT-100/450 | 100x450 | 7 | |||||
| TC-16MT-120/450 | 120x450 | 7 |
Product Features
- Maximum temperature: 1200°C (HRE resistance wire heating), 1400°C (silicon carbon rod heating), 1600°C (silicon molybdenum rod heating)

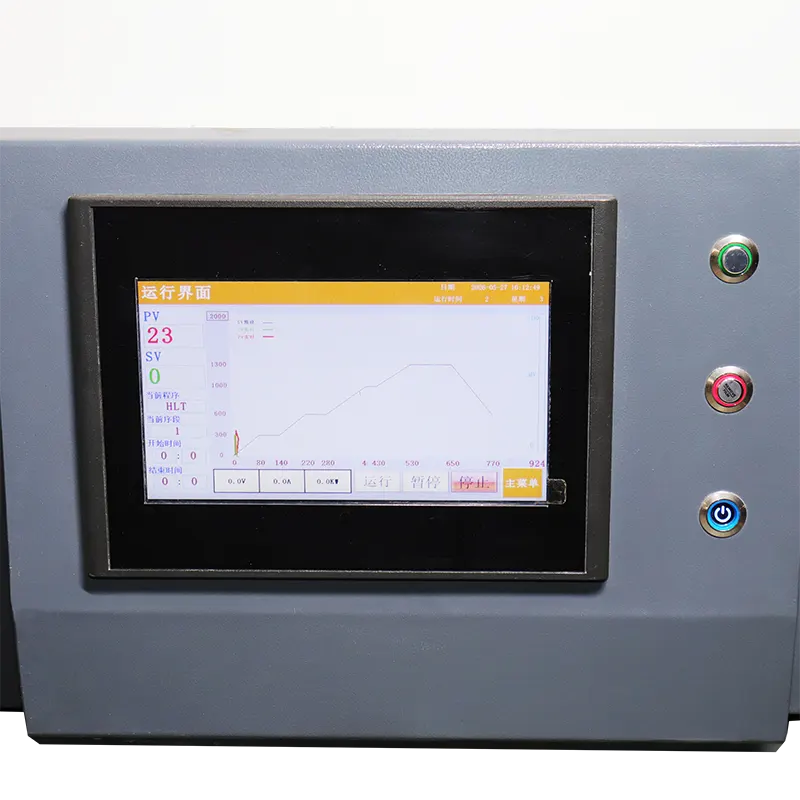

- Intelligent 50-segment programmable automatic control.
- Furnace shell structure, double-layer air-cooling structure; Surface temperature below 50°℃
- The furnace adopts high-quality alumina polycrystalline fiber inorganic material formed by vacuum adsorption using Japanese technology, which has excellent thermal insulation performance.

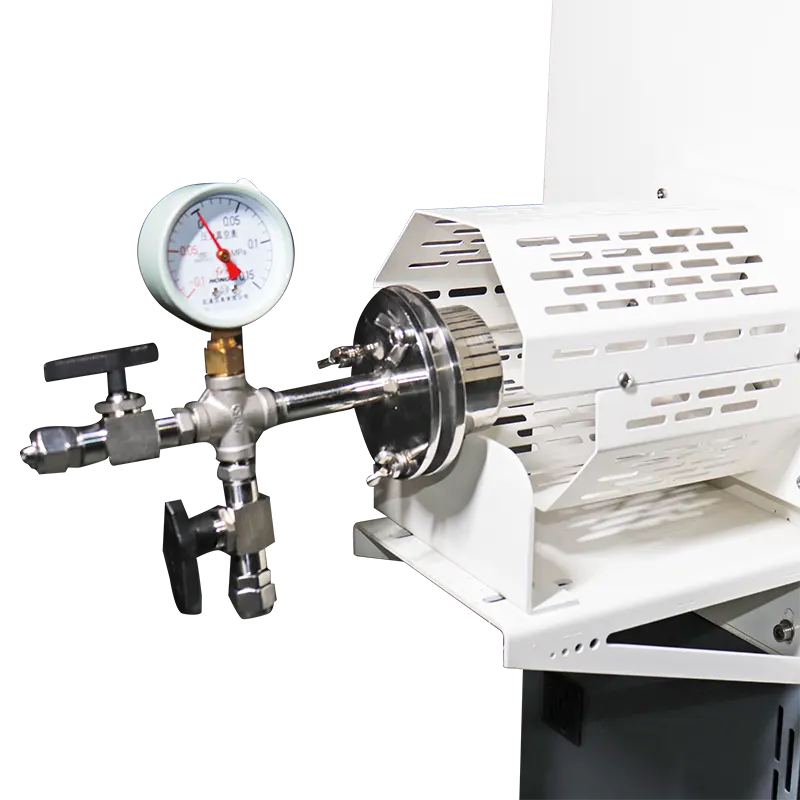

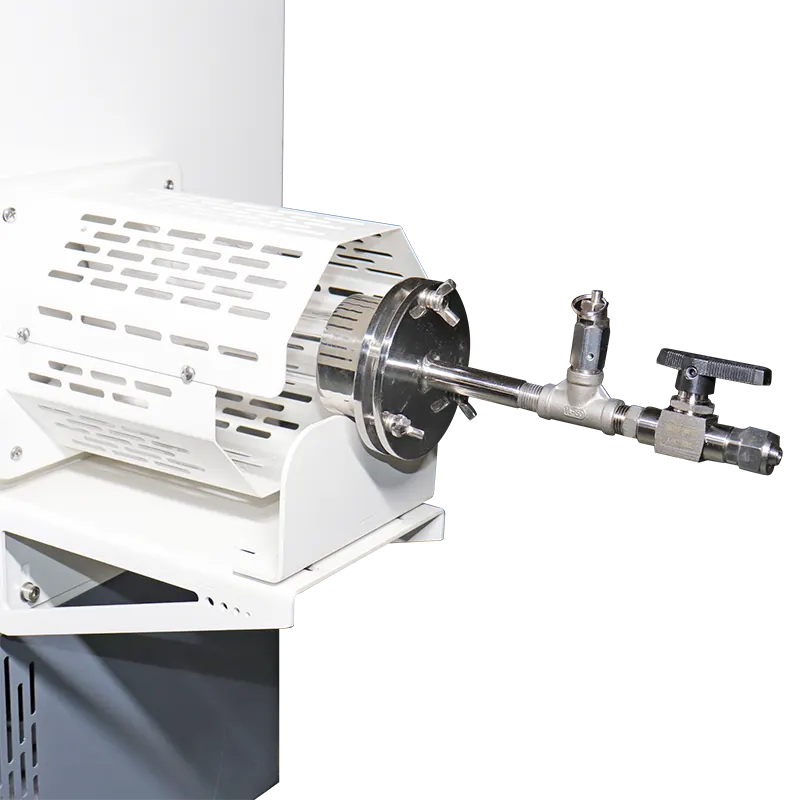

- 304 stainless steel double-layer sealing flange.
- Adjustable flange support structures at both ends extend the service life of the furnace tube.
- Over-temperature protection function, automatically cuts off power when the temperature exceeds the allowed set value.
- Safety protection: Automatically cut off power when the furnace body leaks electricity.
- Heating rate ≤20°C/min.
- Temperature control accuracy ±1°C.
- Maximum vacuum degree-0.1MPa
- Molecular pump unit can be configured, and the vacuum degree can reach 7*10-4Pa.
Accessories & Customization
Standard accessories:
4 pipe plugs; 1 furnace pipe ; 1 vacuum pump.
1 set of vacuum sealing flange ; 1 vacuum pressure gauge.
Optional accessories:
◆Vacuum system (rotary vane mechanical pump, diffusion pump, molecular pump)
◆Atmosphere system (float flow meter, mass flow meter)
◆Quick release flange, 3-way flange
