Product Introduction

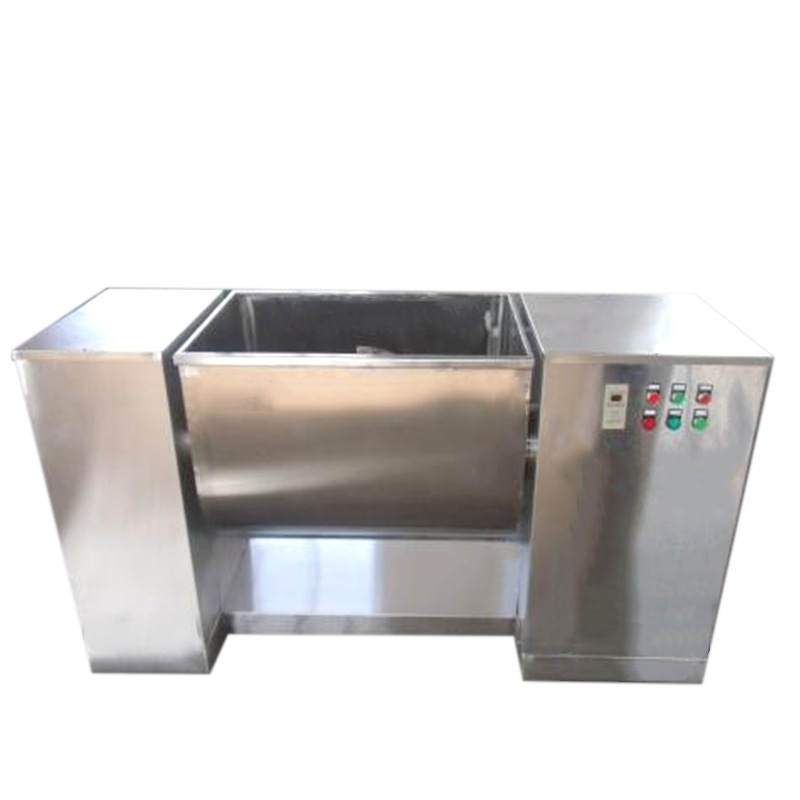

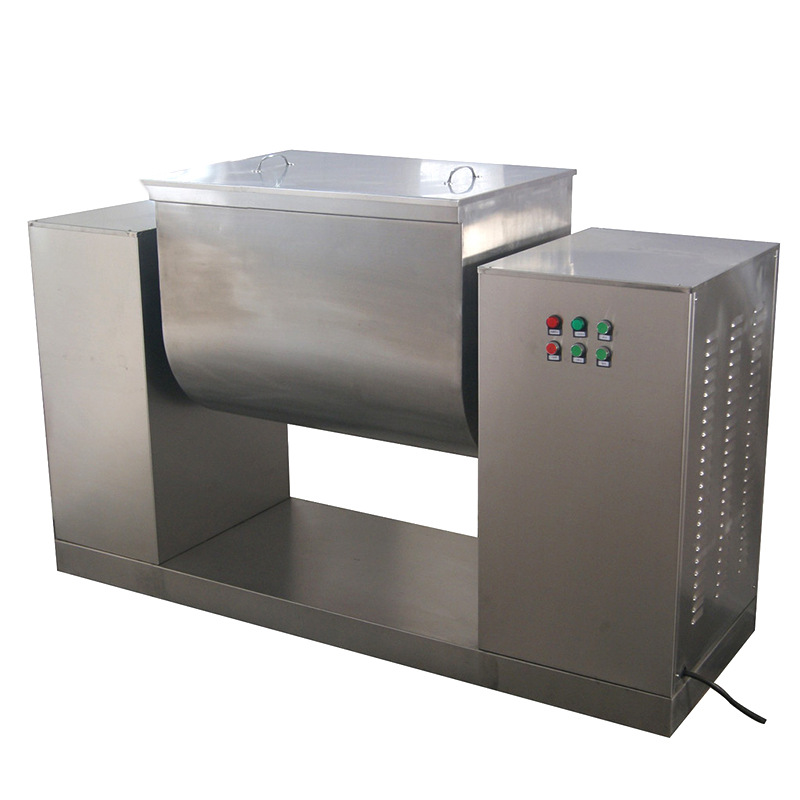

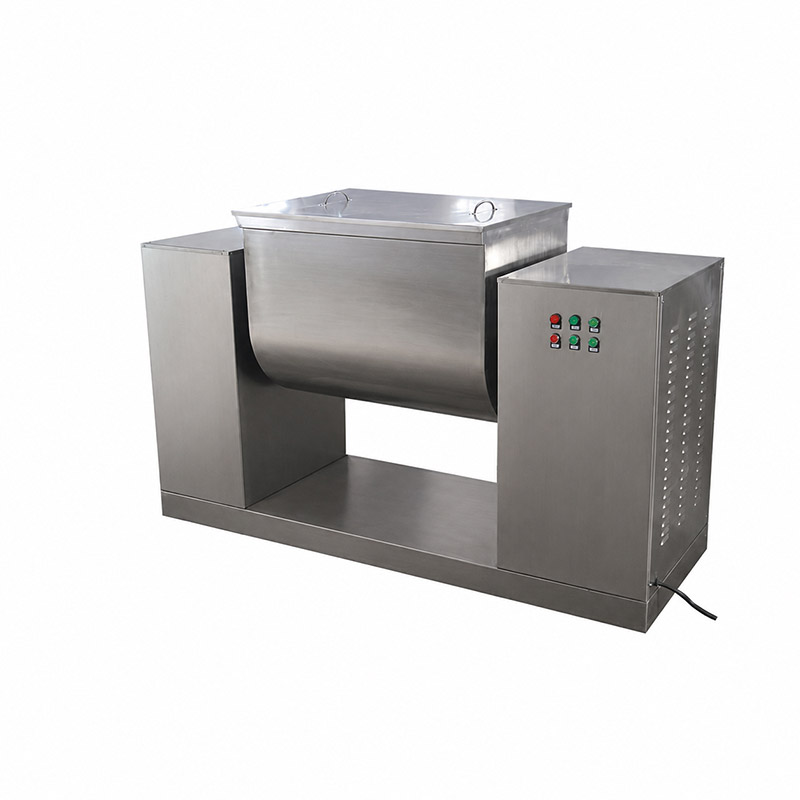

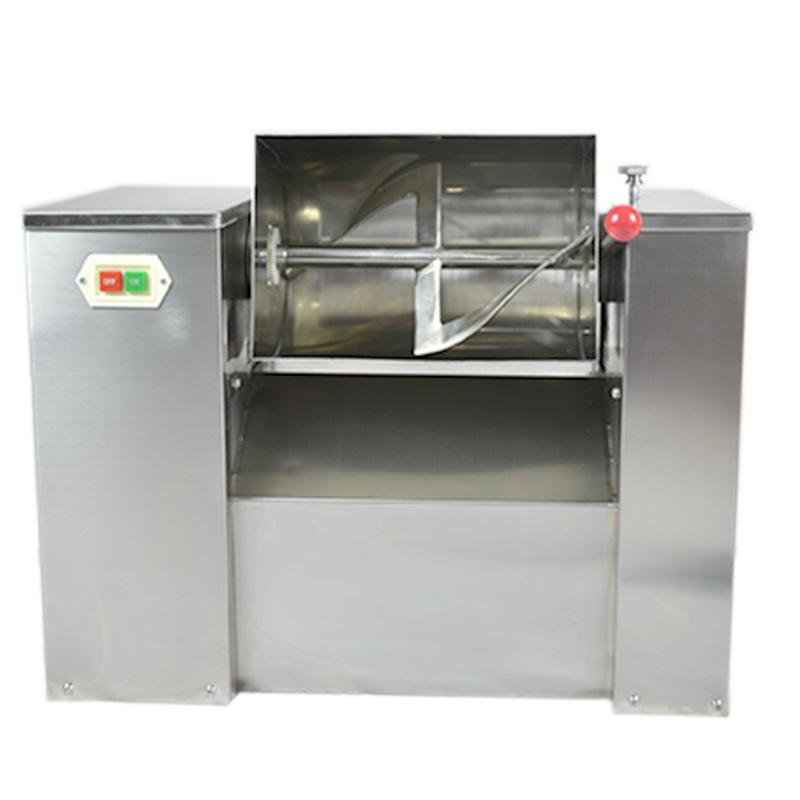

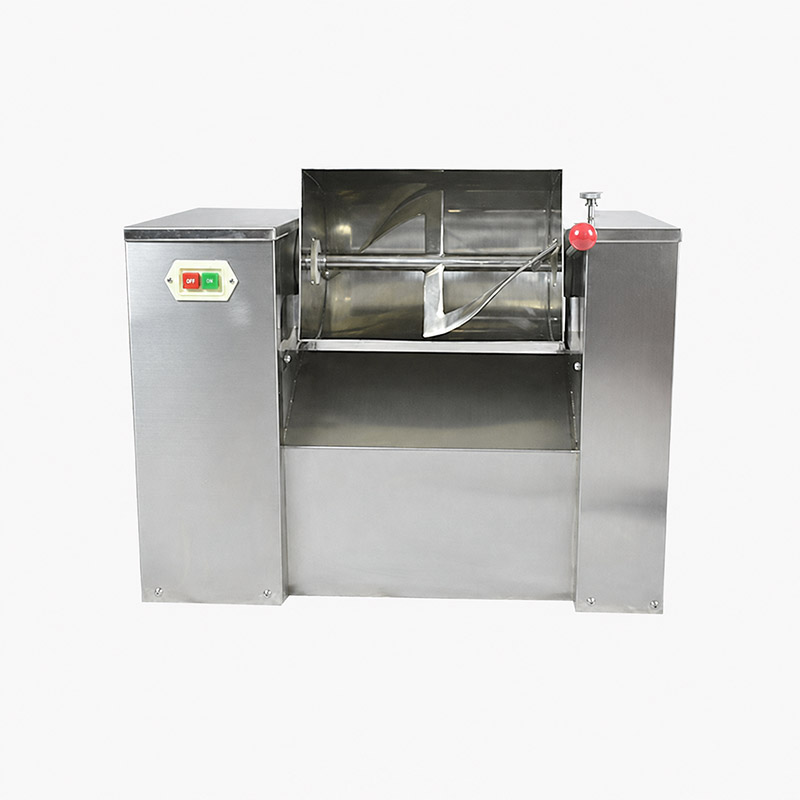

The trough mixer is used to mix powdery or paste materials to mix dissimilar materials evenly. It is characterized by a horizontal trough type single pulp mixing, and the stirring paddle is a through shaft, which is easy to clean. All parts in contact with materials are made of stainless steel. The rotation of the paddle blades in the trough is used to evenly mix dissimilar materials. The trough and blades of the round trough mixer run in opposite directions at the same time, making it more efficient and mixing more uniformly than ordinary trough mixers. It is often used for mixing raw materials in pharmaceutical, food, chemical and other industries.
Technical parameters
| model | CH10 | CH50 | CH100 | CH200 | CH300 |
| Working volume (L) | 10 | 50 | 100 | 200 | 300 |
| Spindle speed (r/min) | 24 | 24 | 24 | 24 | 24 |
| Mixing time (min) | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 |
| Main motor power (kw) | 0.25 | 1.1 | 2.2 | 4 | 5.5 |
| Discharging motor power (kw) | with hands | 0.75 | 0.75 | 0.75 | 1.1 |
| Mechanical weight (kg) | 40 | 200 | 250 | 520 | 520 |
| Overall dimensions (mm) | 600*280*450 | 980*420*800 | 1100*440*900 | 1400*600*1200 | 1850*700*1200 |

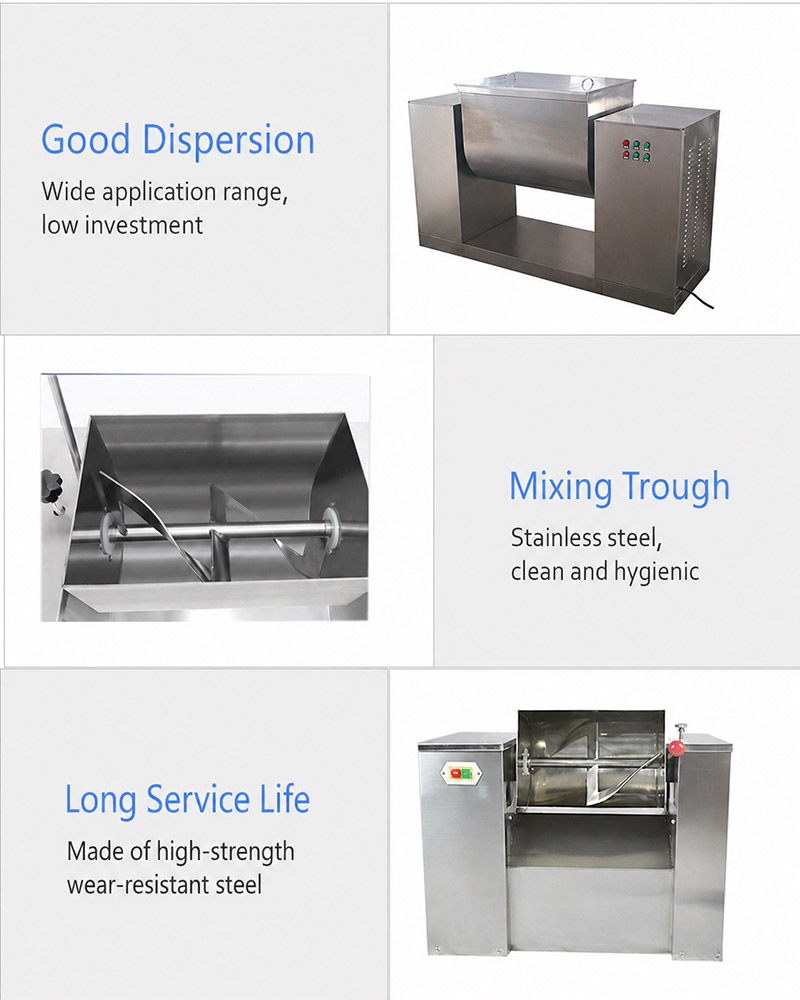

Product Features
1. Good dispersion: The equipment completely solves the problems of low uniformity and dead ends caused by different specific gravity of materials.
2. Wide range of use: This equipment can meet the production of dry powder with different performance requirements.
3. Small investment: This equipment has obvious price advantages. Small investment and quick results.
4. Simple and convenient to use: The equipment has a small footprint, simple operation and low energy consumption.
5. Long service life: All vulnerable parts of this equipment are made of high-strength wear-resistant steel. It has the characteristics of long service life.
