Product Introduction
The graded jet mill has wide adaptability to ultra-fine grinding of various materials. It has good crushing properties for high hardness, brittle materials, coagulable and fibrous materials. Such as: zircon sand, zirconium oxide, silica, rutile titanium dioxide, alumina, talc, barium carbonate, barium sulfate, calcium carbonate, aluminum silicate, kaolin, carbon black, white carbon black, AC foaming agent, copy toner, paint, calcium hydrogen phosphate, bentonite, phosphor, graphite, various fillers for plastics and rubber, pesticides, pearl powder, pollen, etc. With the development of high and new technologies, the scope of application will be wider.

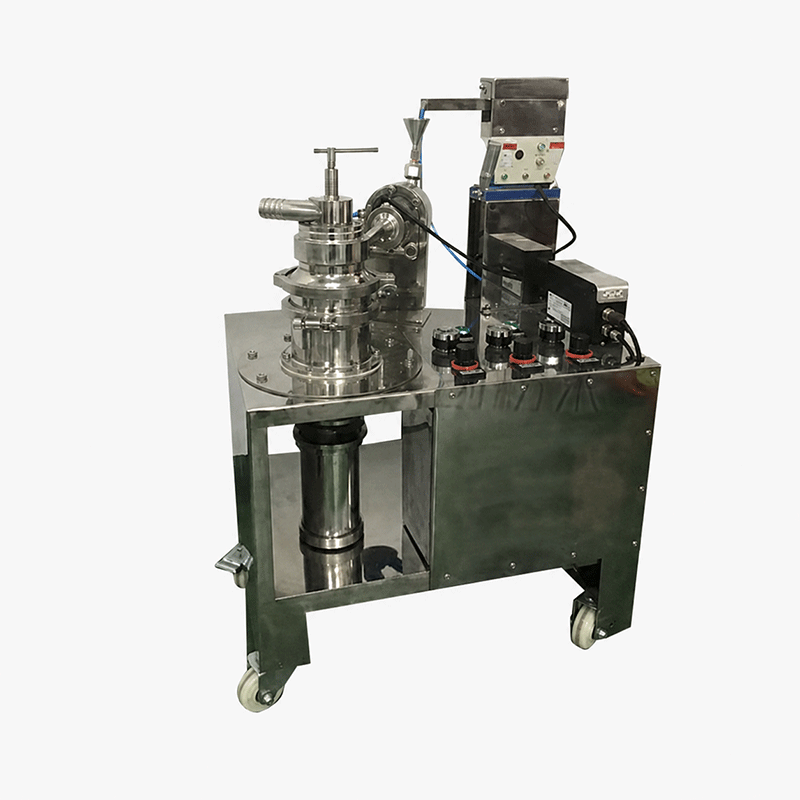

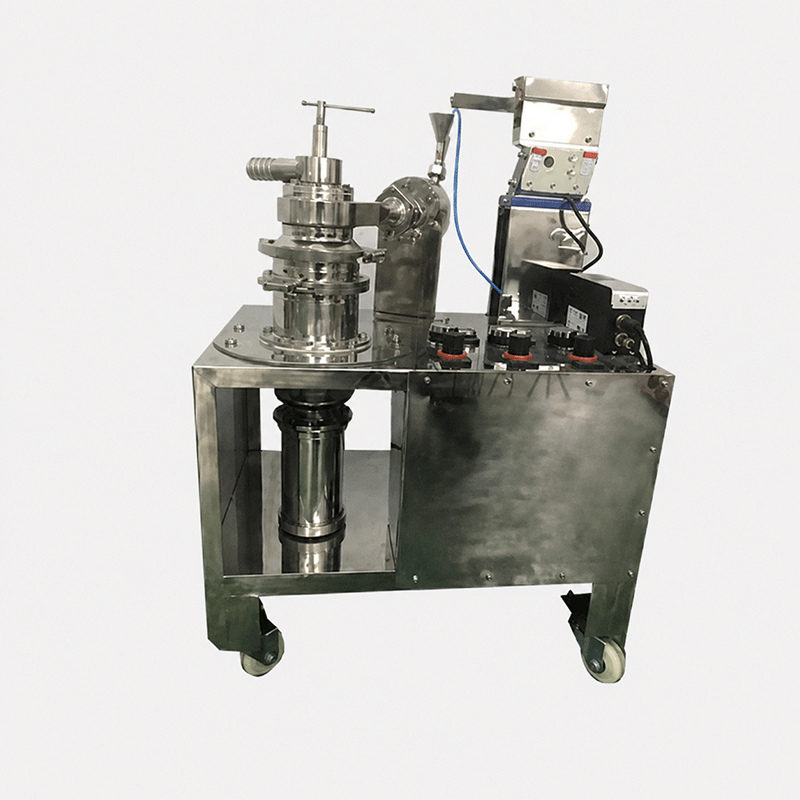

Laboratory classification jet mill is widely used in zircon sand, zirconia, silica, rutile titanium dioxide, alumina, talc, barium carbonate, barium sulfate, calcium carbonate, aluminum silicate, kaolin, Carbon black, white carbon black, AC Foaming agent, copy toner, paint, calcium hydrogen phosphate, Bentonite, fluorescent powder, graphite, various fillers for plastics and rubber, pesticides, pearl powder, pollen and other fields.
Technical parameters
Model: QLF-50
Design pressure: 6.5-7Kg/cm²
Operating pressure: 6.5-11Kg/cm²
Air volume:0.6m³/min
Power consumption: 5.5Kw/h
Processing capacity: 0.05-0.5Kg/h
Feed particle size: generally 100-200 mesh (the material properties and user’s requirements for fineness vary depending on the material properties)
Processing intensity: average particle size <5μ (depends on material hardness, feed particle size, crushing pressure, feed speed, etc.).

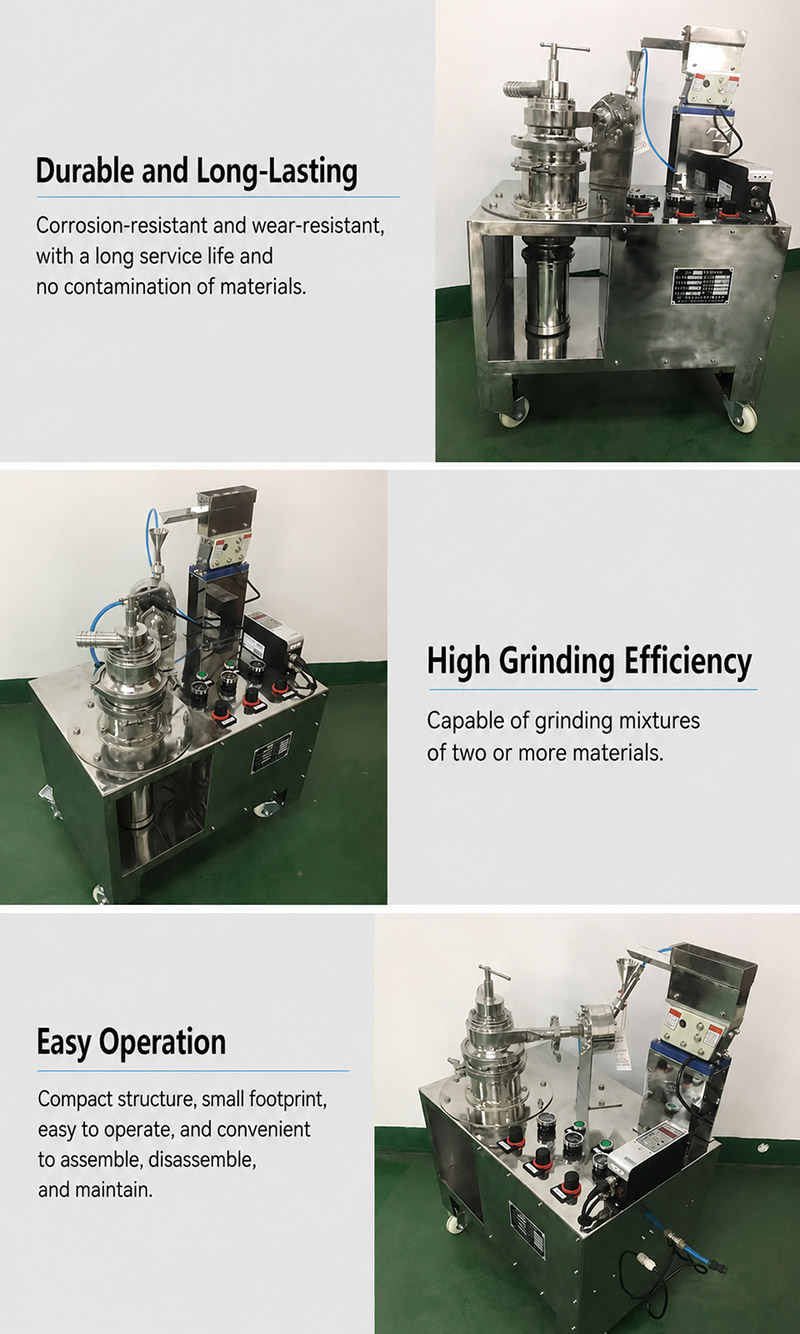

Product Features
The current flowing components of this machine are corundum ceramics with high hardness and high wear resistance. Its unique advantages are:
1. Corrosion-resistant, wear-resistant, long service life, and does not pollute materials.
2. Strong ultra-fine crushing ability and low energy consumption.
3. Since the work project is carried out below room temperature, it is especially suitable for low melting point and heat-sensitive materials.
4. It can crush two or more mixed materials.
5. Compact structure, small footprint, simple operation, and convenient assembly, disassembly and maintenance.
