Product Introduction

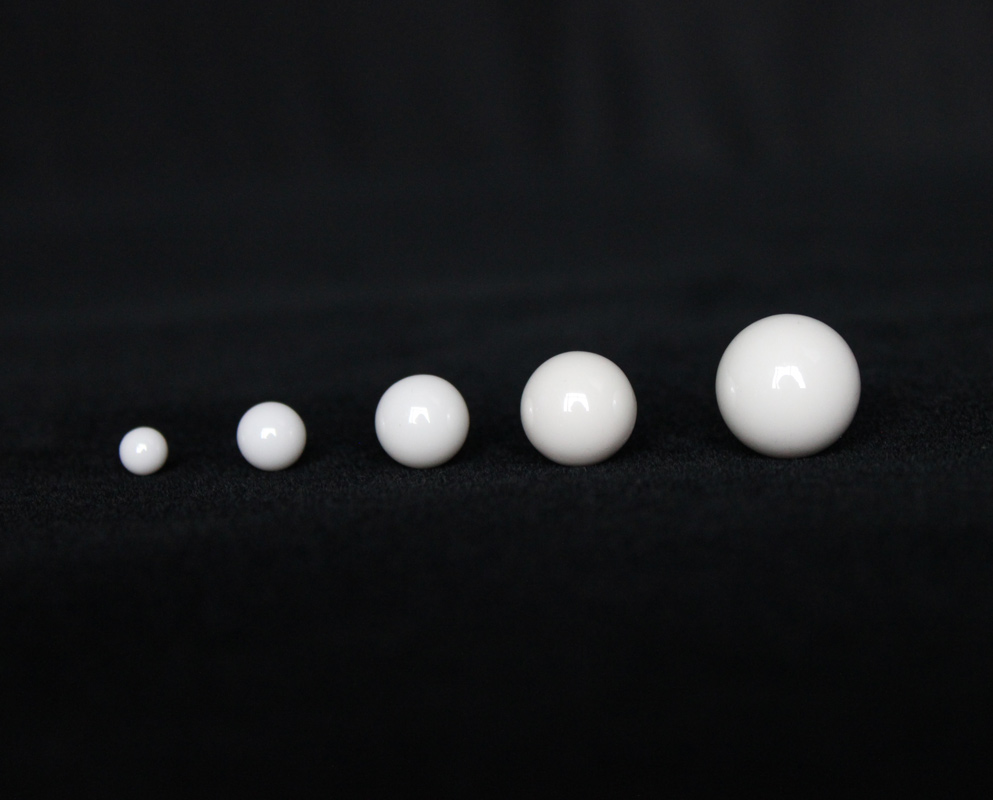

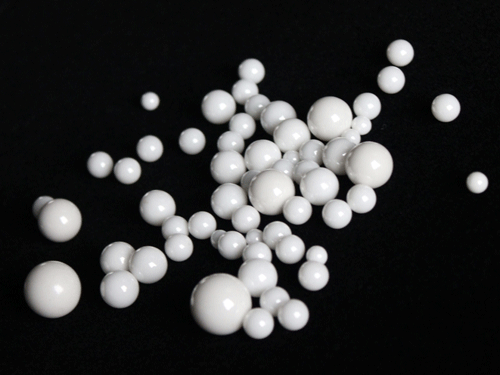

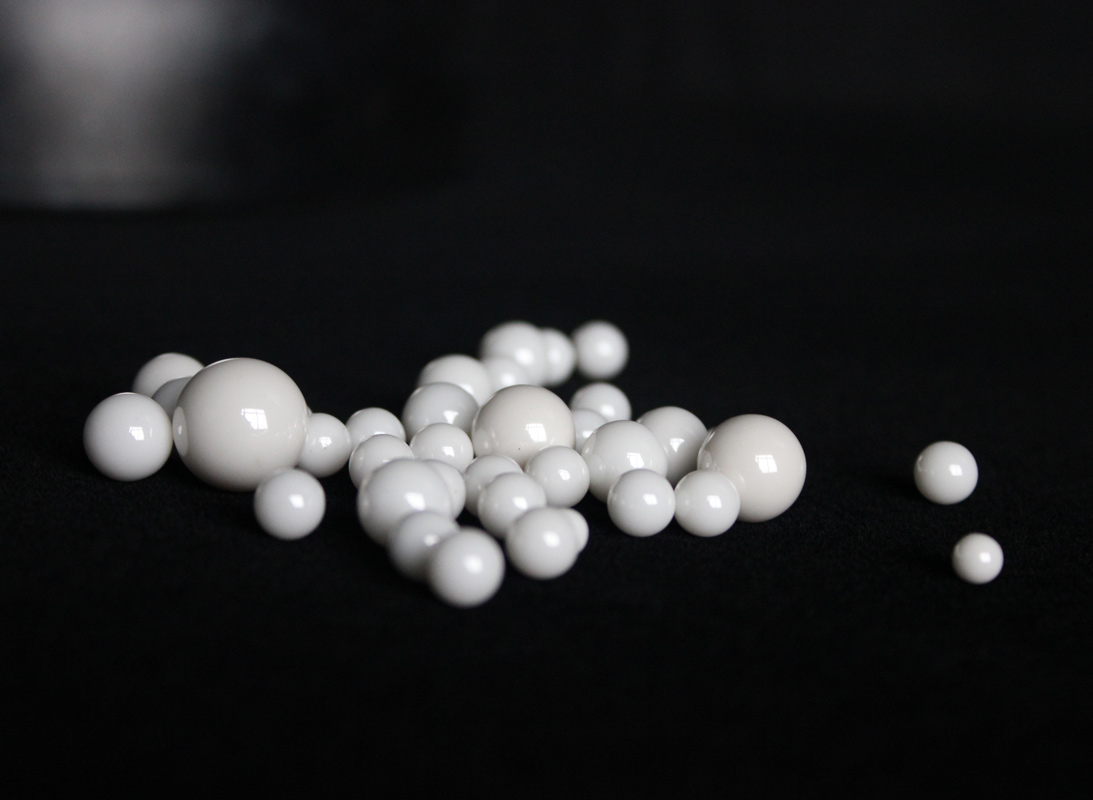

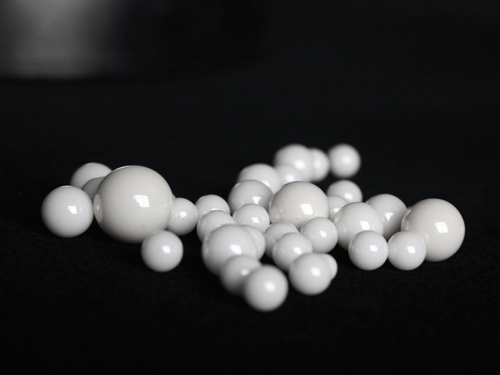

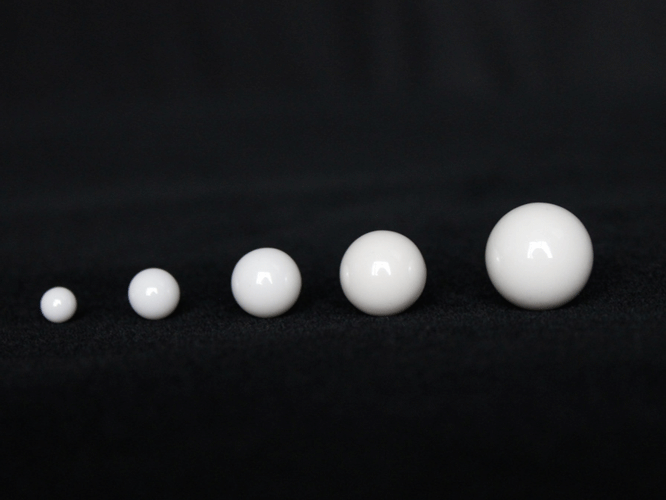

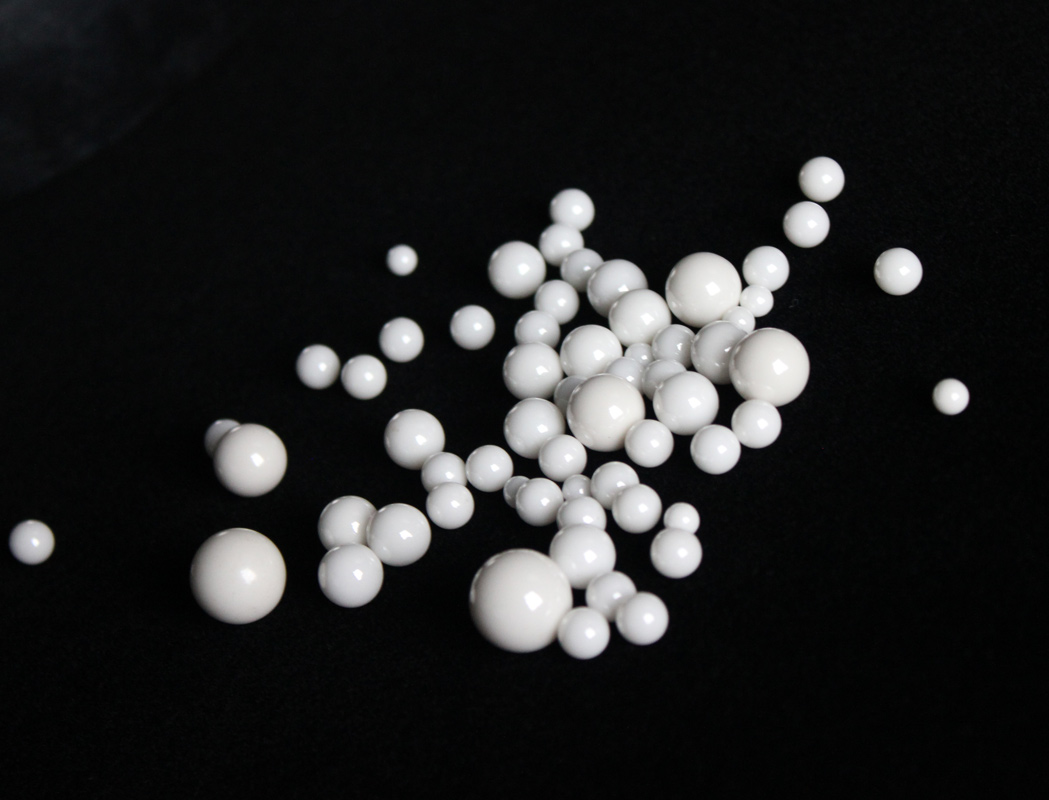

Zirconia balls, also known as zirconia grinding balls, zirconia ceramic balls, zirconium beads, ultra-fine grinding media, zirconia beads, zirconia grinding balls, have pearl-like luster and smooth working spherical surface, and are widely used in grinding media.
Technical parameters
diameter: Φ1mm-Φ30mm
Main ingredients: ZrO₂ (≥95%), Y₂O₃ stable
Density (g/cm³): 6.0
hardness: High, Mohs ~8.5, HV ~1250
Wear resistance (wear rate): Excellent, approximately 10⁻⁷ g/h
Contamination risk: Extremely low, inert, no metal contamination
Main application areas: High-purity, high-efficiency grinding, such as lithium battery materials, electronic ceramics, medicine, and high-end pigments.
* The above parameters are for reference only. The specific parameters are subject to actual conditions or customized parameters can be customized according to special requirements.;
Product Features
It has high strength and toughness, high density, good wear resistance, high temperature resistance and corrosion resistance, high stiffness, non-magnetic conductivity, electrical insulation, and thermal expansion coefficient close to steel at normal temperature.
Advantages: At 600°C, the strength and hardness of zirconia ceramic balls are the same as before.
1. High grinding efficiency: The specific gravity of yttrium-stabilized TZP zirconia ceramic beads is 1.6 times that of ordinary zirconia beads, and has higher grinding efficiency under the same conditions.
2. Good fluidity: The product has good roundness, smooth surface, and lower wear on equipment than other grinding media.
3. Impact resistance and low wear: TZP zirconia ceramic beads have good toughness and will not crack or peel in high-speed, high-concentration machines. The wear is only 1/2 of zirconium silicate beads.
4. Low cost of use: Choosing this product will definitely bring you a reduction in comprehensive costs such as media wear, power consumption, labor, equipment, etc., and greatly improve product quality.
